Kategori
LCD
Marka
Waveshare
Stok Kodu
0.85inch LCD Module
0.85inch LCD Display Module, IPS Panel, 128×128 Resolution, SPI Interface, 65K colors

0.85inch LCD Display Module, IPS Panel, 128×128 Resolution, SPI Interface, 65K colors

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ

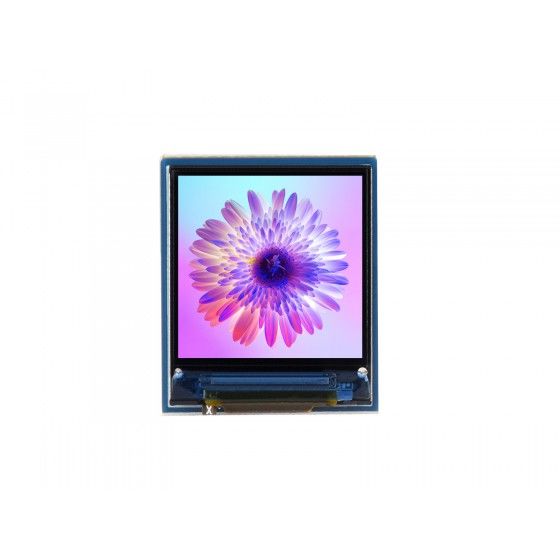

0.85inch LCD Display Module
Embedded GC9107 Driver, Using SPI Bus
Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
  • Size0.85"
    •
  • Resolution128×128
    •
  • Display Color65K RGB
    •
  • InterfaceSPI
    •
  • DriverGC9107
Features At A Glance
                          • 128×128 resolution, 65K RGB colors, clear and colorful displaying effect
                          • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
                          • Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
Specifications
OPERATING VOLTAGE 3.3V RESOLUTION 128 × 128 pixels
COMMUNICATION INTERFACE 4-wire SPI DISPLAY SIZE 15.21×15.21mm
DISPLAY PANEL IPS PIXEL PITCH 39.6×118.8um
DRIVER GC9107 DIMENSIONS 19.0×22.5mm
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson Series
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Connecting With STM32




Ekran Boyutu : 0.85 inch
