Overview

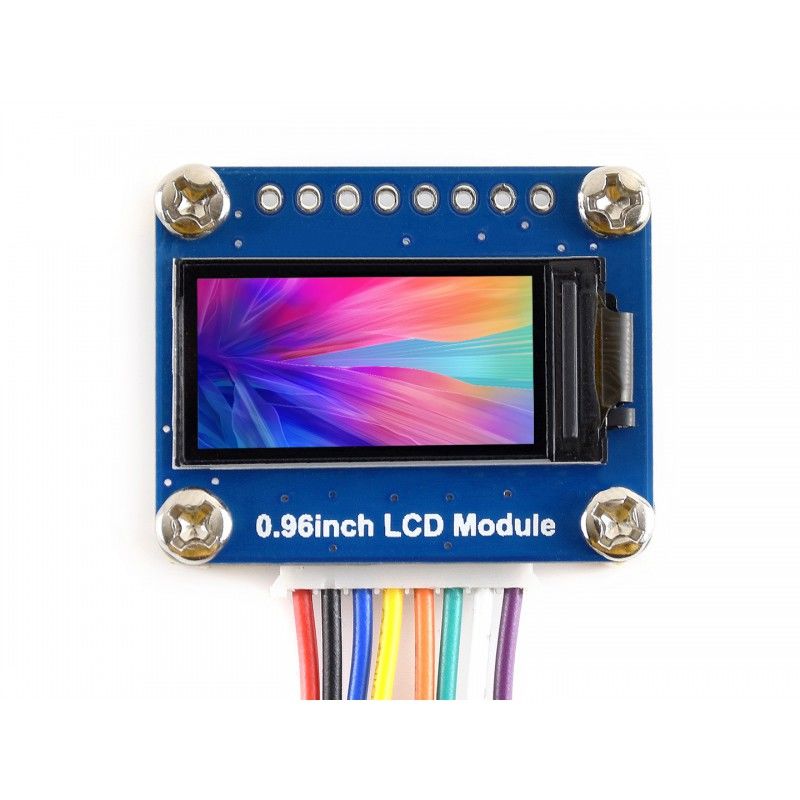

This is a general LCD display Module, IPS screen, 0.96inch diagonal, 160x80 HD resolution, with embedded controller, communicating via SPI interface.
Features
SPI interface, requires minimum GPIO for controlling
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
Driver: ST7735S
Interface: SPI
Display color: RGB, 65K color
Resolution: 160x80
Backlight: LED
Operating voltage: 3.3V/5V
Interface: SPI
Display color: RGB, 65K color
Resolution: 160x80
Backlight: LED
Operating voltage: 3.3V/5V
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3V/5V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Dimensions
| Ekran Boyutu | : | 0.96 inch |
