0.96inch OLED Module (C)

0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication
0.96inch OLED Display Module

Embedded SSD1315 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



                                      • Size0.96"
                                      • Resolution128×64
                                      • Display Coloryellow&blue(two blocks)
                                        /white/blue (optional)
                                      • InterfaceSPI/I2C
                                      • Display PanelOLED
                                      • DriverSSD1315

Version Options

Features At A Glance
  • Ultra-narrow bezel, conpact size, with onboard voltage translator
  • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V DISPLAY PANEL OLED
RESOLUTION 128 × 64 pixels PIXEL SIZE 0.15 × 0.15 mm
COMMUNICATION INTERFACE 4-wire SPI / I2C DRIVER SSD1315
DISPLAY SIZE 21.74 × 11.18 mm MODULE SIZE 26.00 × 26.00mm
DISPLAY COLOR (C): upper yellow & lower blue; (D): white; (E): blue

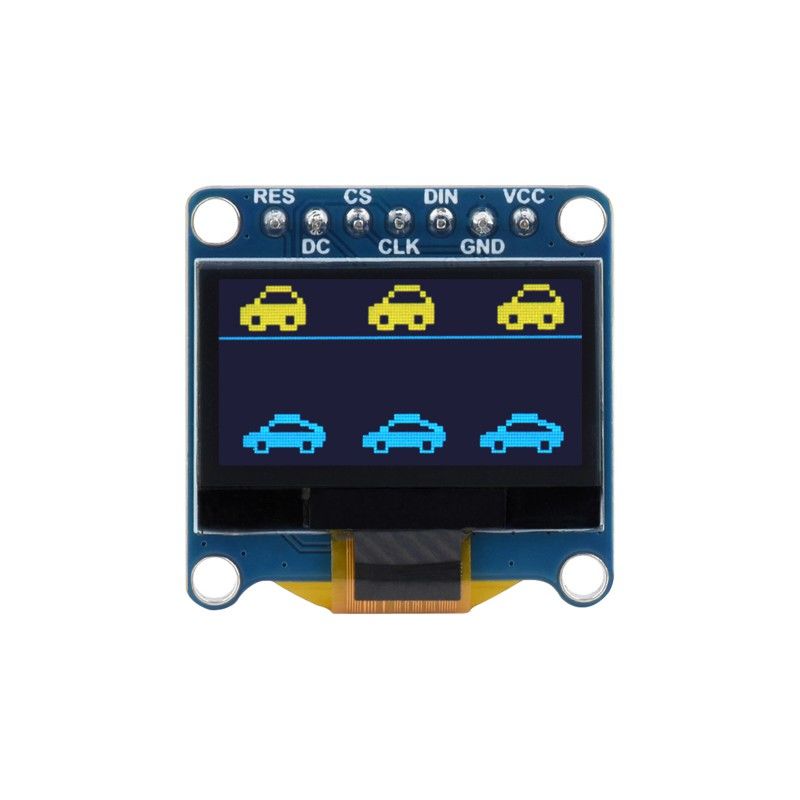

Control Interface
RES Reset, low active
DC Data/Command selection (high for data, low for command)
CS Chip selection, low active
CLK Clock input
DIN Data input
GND Ground
VCC Power (3.3V / 5V input)

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface



Usage Example

for reference only, the STM32 board is NOT included.


Product Show
Outline Dimensions
