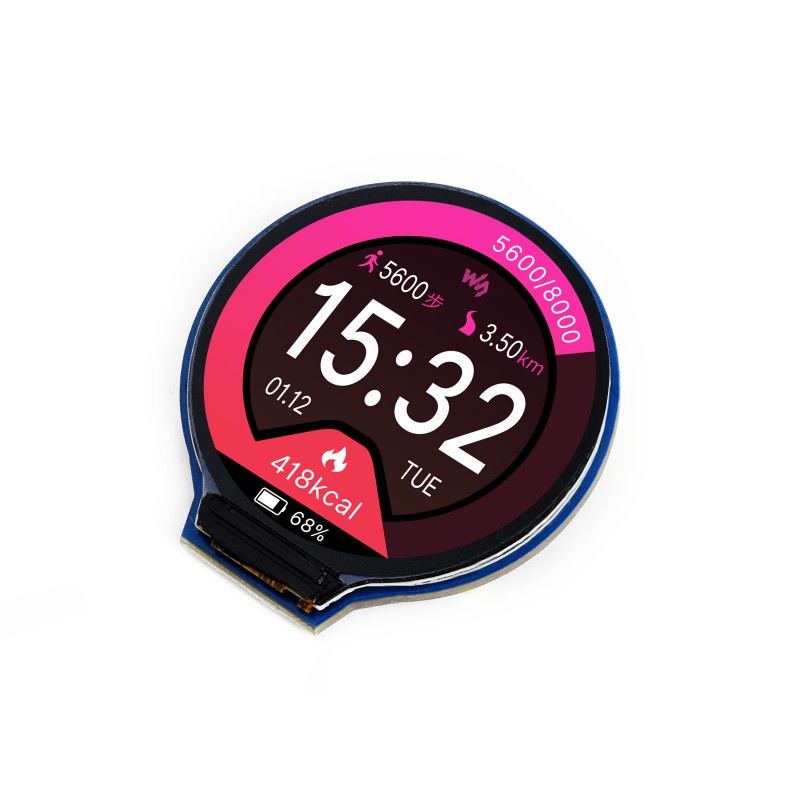

1.28inch Round LCD Display Module, 65K RGB Colors, 240×240 Resolution, SPI Interface
1.28" ROUND LCD DISPLAY MODULE
Embedded GC9A01 Driver, Using SPI Bus
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 240×240 resolution, 65K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 240 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | Φ32.4mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.135 × 0.135mm |
| DRIVER | GC9A01 | DIMENSIONS | 40.4 × 37.5mm Φ37.5mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Living Example
Outline Dimensions
| Ekran Boyutu | : | 1.28 inch |
