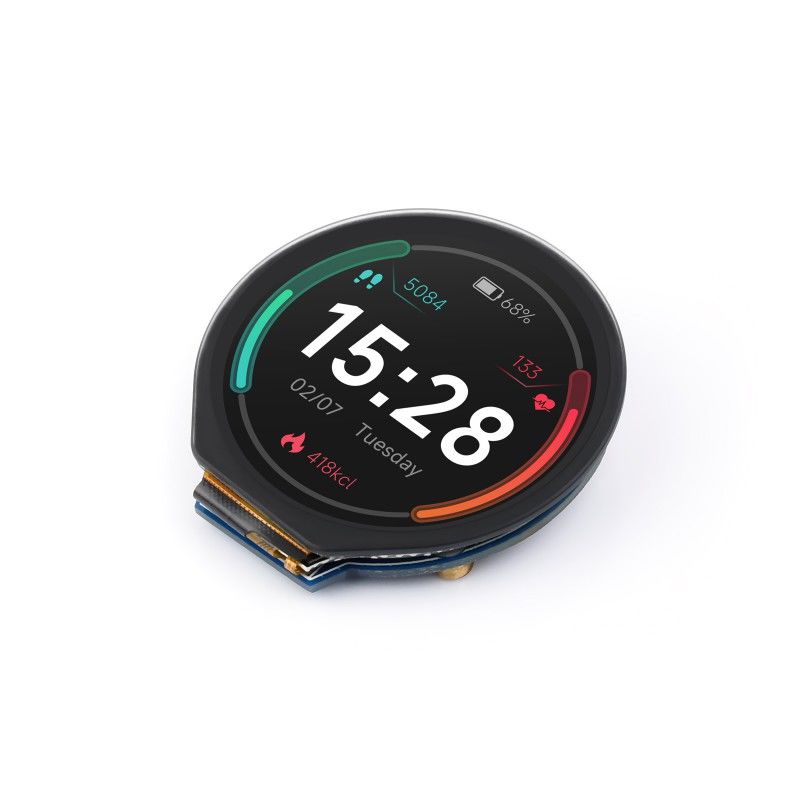

1.28inch Round LCD Display Module With Touch Panel, 240×240 Resolution, IPS, SPI And I2C Communication
1.28inch Touch LCD Display Module
Embedded GC9A01 Driver And CST816S Capacitive Touch Control Chip Using SPI And I2C Communication Respectively Comes with examples for Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, etc.
Size1.28"
Resolution240×240
Display Color65K
Display PanelIPS
Display DriverGC9A01
Display InterfaceSPI
Touch DriverCST816S
Touch InterfaceI2C
Features At A Glance
240×240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)
Specifications
OPERATING VOLTAGE
3.3V / 5V
RESOLUTION
240 × 240 pixels
DISPLAY DRIVER
GC9A01
DISPLAY INTERFACE
4-wire SPI
TOUCH DRIVER
CST816S
TOUCH INTERFACE
I2C
DISPLAY PANEL
IPS
TOUCH TYPE
Capacitive
DISPLAY SIZE
Φ32.4mm
PIXEL SIZE
0.135 × 0.135 mm
MODULE SIZE
39.89 × 38.50mm Φ38.50mm
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function
Control Interfaces
For Use With Controller Boards Like Raspberry Pi / Raspberry Pi Pico / Arduino / STM32
VCC
Power (3.3V / 5V input)
GND
Ground
MISO
SPI MISO pin
MOSI
SPI MOSI pin
SCLK
SPI Clock pin
LCS_CS
LCD Chip Selection, low active
LCS_DC
LCD Data/Command selection (high for data, low for command)
