1.32inch OLED Display Module, 128×96 Resolution, 16 Gray Scale, SPI / I2C Communication

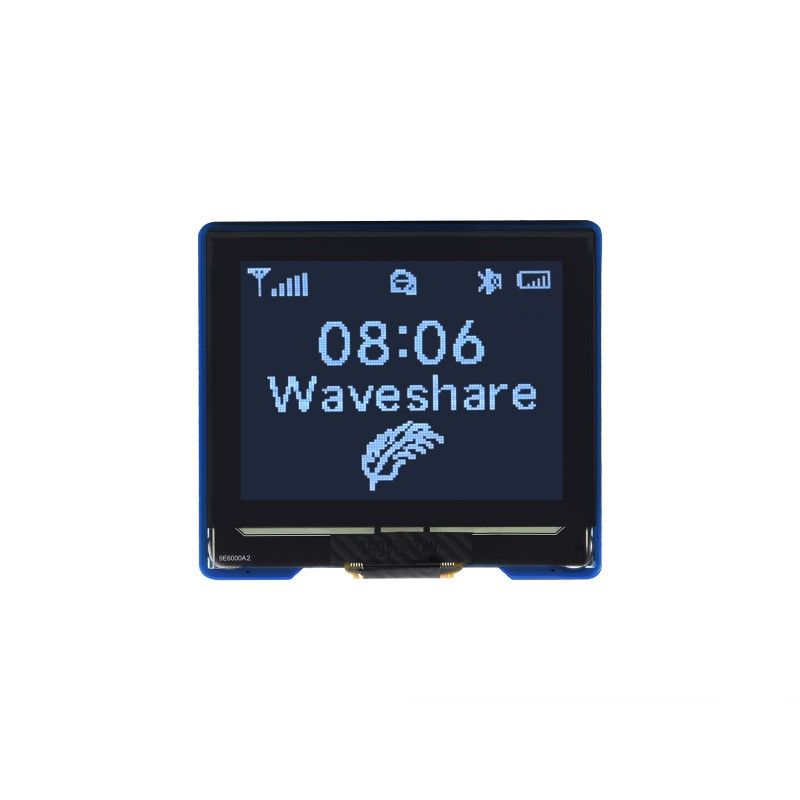

1.32inch OLED Display Module

Embedded SSD1327 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



    • Size1.32"
      •
    • Resolution128×96
      •
    • Display ColorBlack/White
      •
    • Grey Scale16

  • Display PanelOLED
    •
  • DriverSSD1327
    •
  • InterfaceSPI/I2C
    •
  • ConnectorGH1.25 7Pin

Features At A Glance
                                    • Ultra-narrow bezel, conpact size, with onboard voltage translator
                                    • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
                                    • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V DISPLAY PANEL OLED
RESOLUTION 128 × 96 pixels PIXEL SIZE 0.19 × 0.19 mm
COMMUNICATION INTERFACE 4-wire SPI / I2C DRIVER SSD1327
DISPLAY SIZE 26.86 × 20.14mm MODULE SIZE 34.30 × 30.50mm

Control Interface
RES Reset, low active
DC Data/Command selection (high for data, low for command)
CS Chip selection, low active
CLK Clock input
DIN Data input
GND Ground
VCC Power (3.3V / 5V input)

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface



Usage Example

for reference only, the STM32 board is NOT included.
