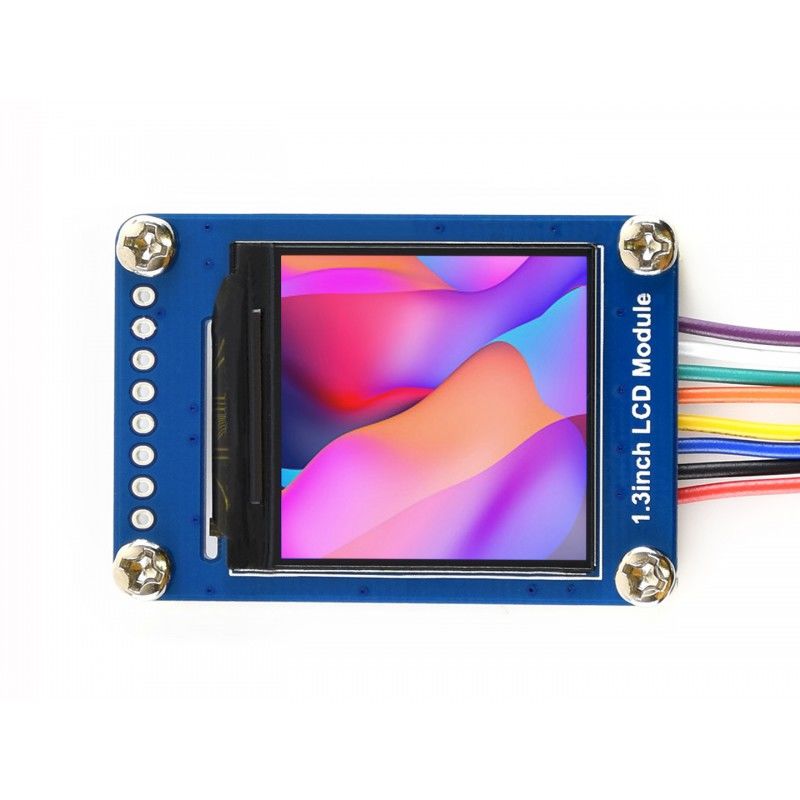

1.3inch LCD Display Module, IPS Screen, 240x240 HD Resolution, SPI Interface
Overview
This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.
Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 240x240
- Backlight: LED
- Operating voltage: 3.3V/5V
Interface
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | Power (3.3V/5V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Dimensions
| Ekran Boyutu | : | 1.3 inch |
