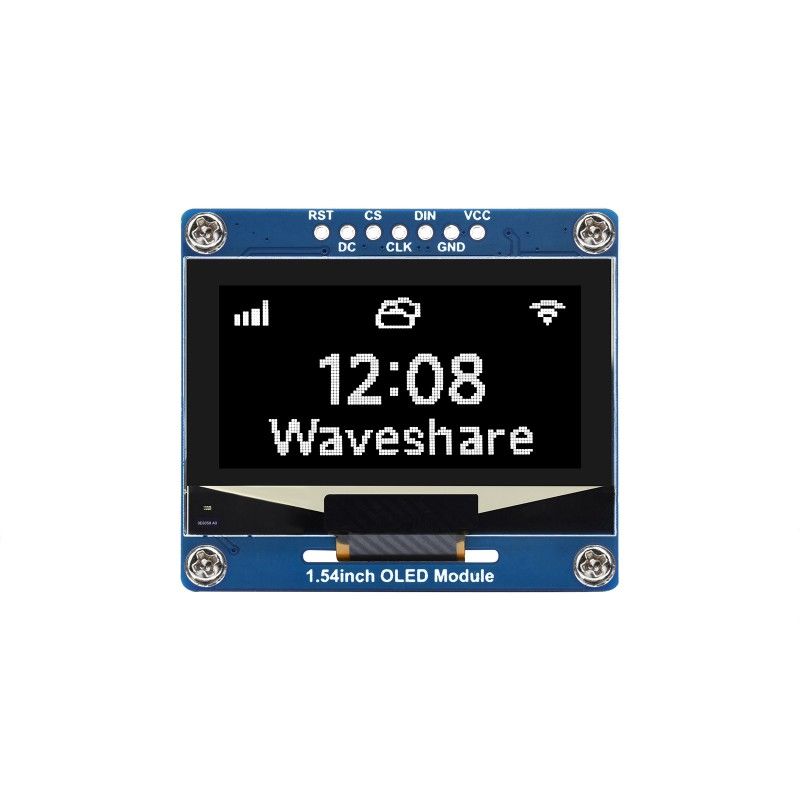

1.54inch OLED Module

1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
1.54inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication
1.54inch OLED Display Module

Embedded SSD1309 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.



    • Size1.54"
    • Resolution128×64
    • Display Coloroptions for white/blue

  • Display PanelOLED
  • DriverSSD1309
  • InterfaceSPI/I2C

Version Options

1.54inch OLED Module
white



1.54inch OLED Module (B)
blue

Features At A Glance
                            • Onboard voltage translator, compatible with 3.3V / 5V MCUs
                            • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
                            • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)
Specifications
OPERATING VOLTAGE 3.3V / 5V DISPLAY PANEL OLED
RESOLUTION 128 × 64 pixels PIXEL SIZE 0.25 × 0.25 mm
COMMUNICATION INTERFACE 4-wire SPI / I2C DRIVER SSD1309
DISPLAY SIZE 35.05 × 17.52mm MODULE SIZE 43.00 × 37.50mm
DISPLAY COLOR 1.54inch OLED Module: white
1.54inch OLED Module (B): blue

Control Interface
VCC Power (3.3V / 5V input)
GND Ground
DIN Data input
CLK Clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface



Usage Example

for reference only, the STM32 board is NOT included.


Product Show

Outline Dimensions
