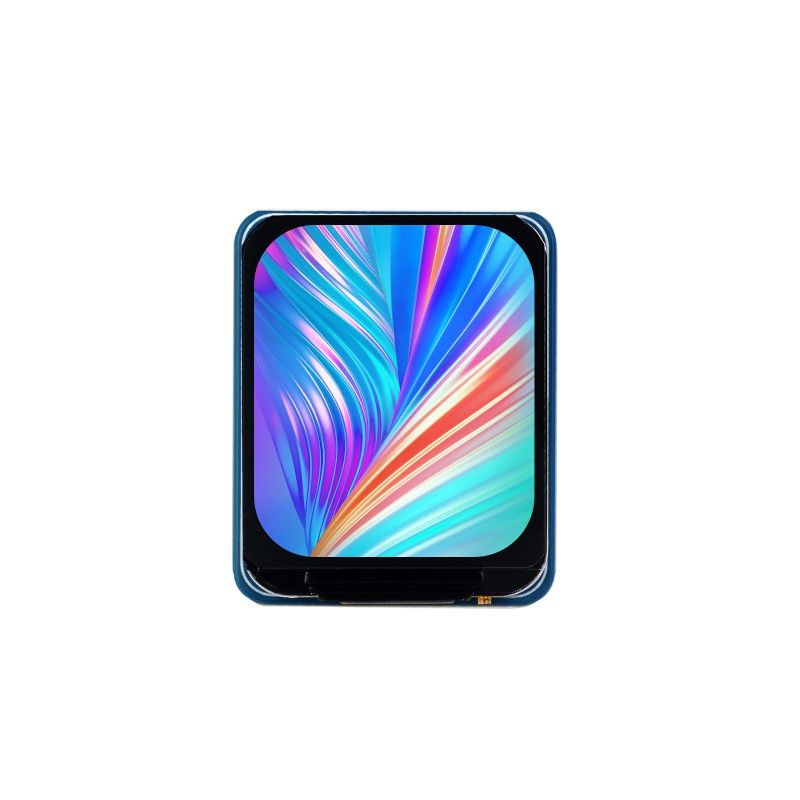

1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K colors
1.5inch LCD Display Module, IPS Panel, Rounded Corners, 240×280 Resolution, SPI Interface, 262K Colors
1.5inch LCD Display Module
Embedded NV3030B Driver, Using SPI Bus
Comes with examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
Features At A Glance
-
-
-
-
-
-
-
-
-
-
-
-
-
- 240×280 resolution, 262K RGB colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)
-
-
-
-
-
-
-
-
-
-
-
-
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 280 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 24.77×28.90mm |
| DISPLAY PANEL | IPS | PIXEL PITCH | 0.1032×0.1032mm |
| DRIVER | NV3030B | DIMENSIONS | 28.5×35.0mm |
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson Series
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
Connecting With STM32
Usage Example
* for reference only, please refer to the Package Content for the detailed part list.
Product Show
Outline Dimensions
| Ekran Boyutu | : | 1.5 inch |
