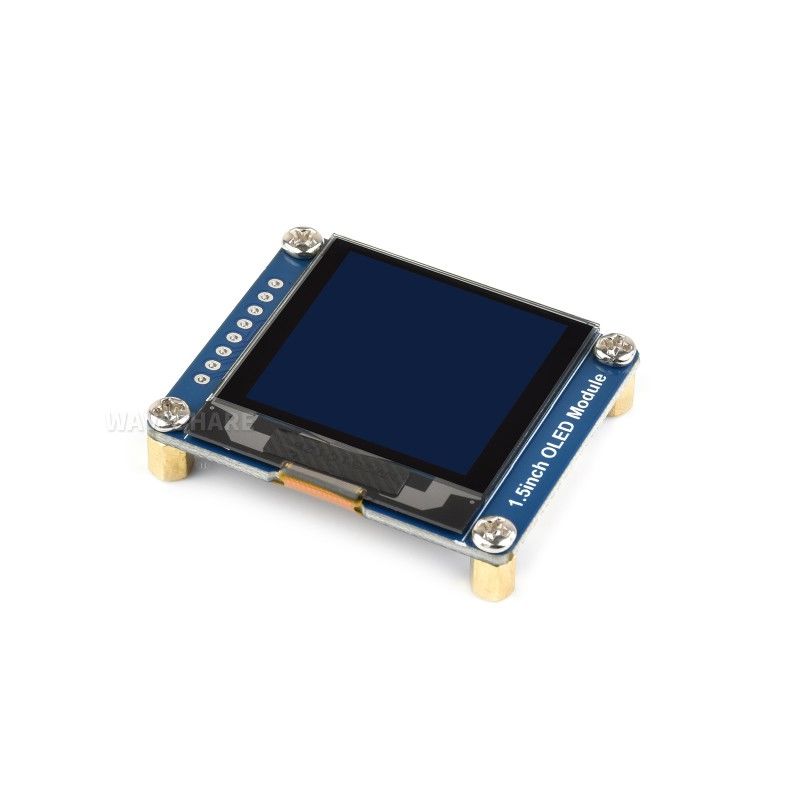

1.5inch OLED Display Module, 128x128 Pixels, 16 Gray Scale, SPI/I2C Interface
Features At A Glance
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| RESOLUTION | 128 × 128 pixels | PIXEL SIZE | 0.185 × 0.185mm |
| COMMUNICATION INTERFACE | 4-wire SPI / I2C | DRIVER | SSD1327 |
| DISPLAY SIZE | 26.86 × 26.86mm | MODULE SIZE | 44.5 × 37.0mm |
Control Interface
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Hardware Connection
Connecting With Raspberry Pi Via SPI Interface
Connecting With Arduino Board Via SPI Interface
Usage Example
for reference only, the STM32 board is NOT included.
Product Show
Outline Dimensions
