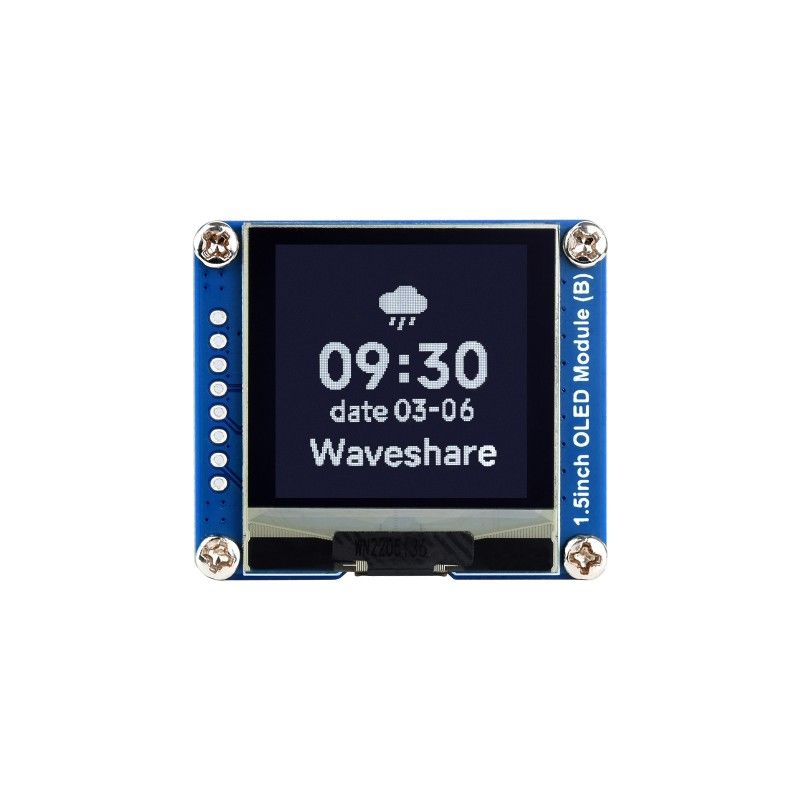

1.5inch OLED Module (B)

1.5inch OLED Display Module, 128×128 Resolution, SPI / I2C Communication, Black / White Display Color

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
1.5inch OLED Display Module, 128×128 Resolution, SPI / I2C Communication, Black / White Display Color
1.5inch OLED Display Module

Embedded SH1107 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, etc.



    • Size1.5"
    •
    • Resolution128×128
    •
    • Display ColorBlack/White
    •
    • Display PanelOLED

  • DriverSH1107
  •
  • InterfaceSPI/I2C
  •
  • ConnectorGH1.25 7Pin

Features At A Glance
                                    • Ultra-narrow bezel, conpact size, with onboard voltage translator
                                    • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
                                    • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V / 5V DISPLAY PANEL OLED
RESOLUTION 128 × 128 pixels PIXEL SIZE 0.185 × 0.185mm
COMMUNICATION INTERFACE 4-wire SPI / I2C DRIVER SH1107
DISPLAY SIZE 26.855 × 26.855mm MODULE SIZE 38.50 × 44.50mm

Control Interface
VCC Power (3.3V / 5V input)
GND Ground
DIN Data input
CLK Clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface



Usage Example

for reference only, the STM32 board is NOT included.


Product Show
Outline Dimensions
