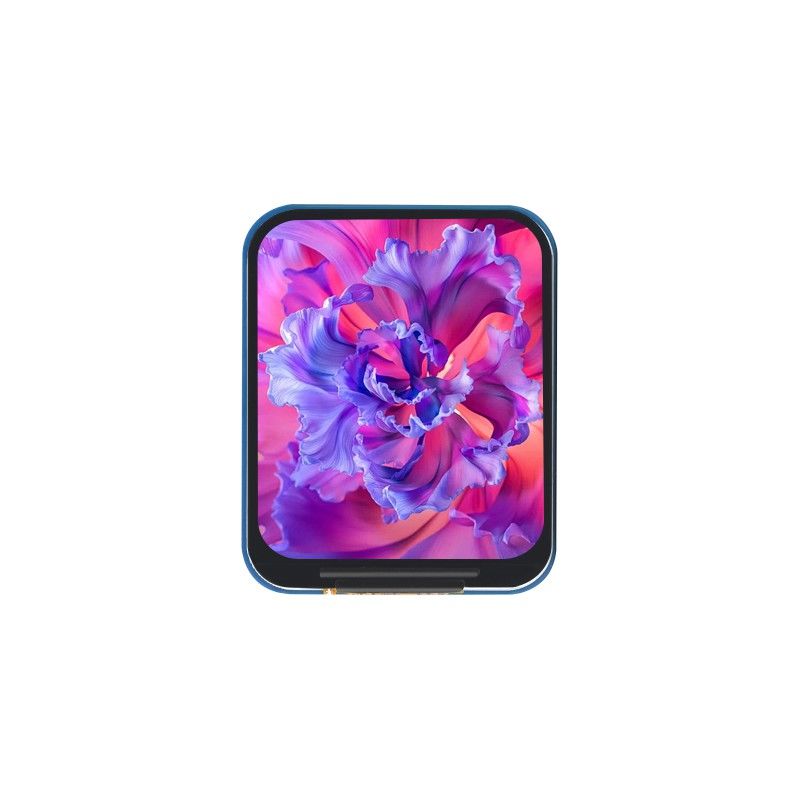

1.69inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS, 262K Colors
1.69inch LCD Display Module
Embedded ST7789V2 Driver Chip, Using SPI Interface
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 240×280 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | RESOLUTION | 240 × 280 pixels |
|---|---|---|---|
| COMMUNICATION INTERFACE | 4-wire SPI | DISPLAY SIZE | 27.97 × 32.63mm |
| DISPLAY PANEL | IPS | PIXEL SIZE | 0.11655 × 0.11655mm |
| DRIVER | ST7789V2 | MODULE SIZE | 31.50 × 39.00mm |
Onboard Voltage Translator
Compatible With 3.3V / 5V Power Input
Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / Arduino / STM32
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Hardware Connection
Connecting with Raspberry Pi
Connecting with Arduino board
Connecting with STM32
Usage Example
Product Show
Outline Dimensions
| Ekran Boyutu | : | 1.69 inch |
