10.4inch QLED Quantum Dot Display, Capacitive Touch, High Brightness, 1600×720, Optical Bonding Toughened Glass Panel, HDMI Interface

10.4inch QLED Quantum Dot Display, Capacitive Touch, High Brightness, 1600×720, Optical Bonding Toughened Glass Panel, HDMI Interface

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ
10.4inch QLED Quantum Dot Display, Capacitive Touch, High Brightness, 1600×720, Optical Bonding Toughened Glass Panel, HDMI Interface

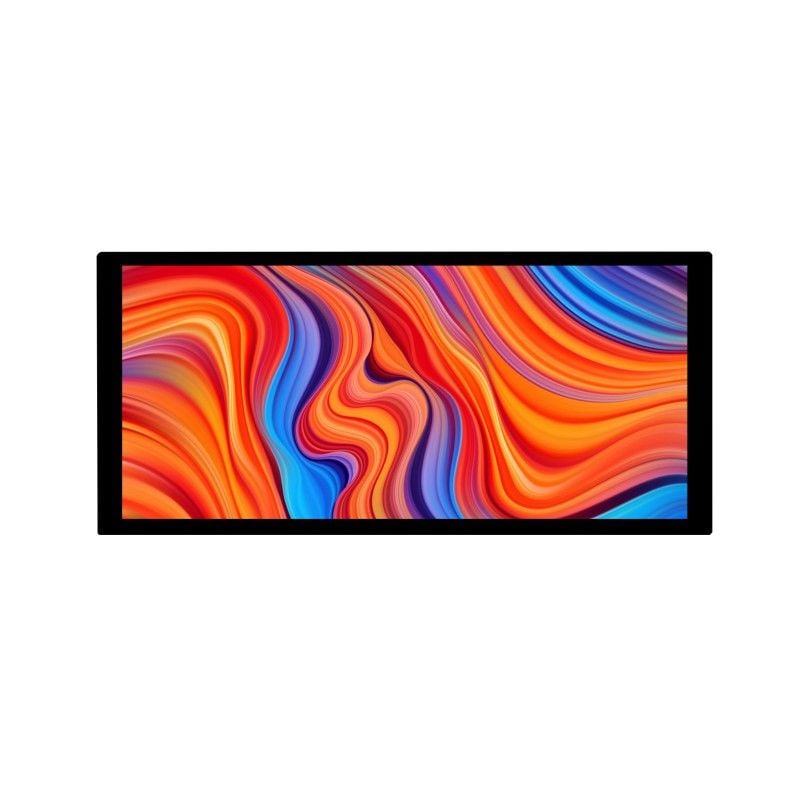

10.4″ QLED Touch Display

High Resolution | Multi-Point Touch | Full Color



                          • Size10.4″
                          • Resolution1600×720
                          • Display InterfaceHDMI
                          • Display PanelQLED Quantum Dot
                          • Viewing Angle178°
                          • Touch TypeCapacitive
                          • Touch Points10-Point
                          • Touch PortUSB Type-C
                          • Touch PanelToughened Glass
                          • Touch Panel TechOptical Bonding
                          • OSD MenuBrightness/Contrast
                          • BrightnessSupports DCC/CI
                            control
                          • Brightness600cd/m²
                          • Audio Output 13.5mm Jack
                          • Audio Output 24PIN Header

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With PC

for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 94%, NTSC 94%

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

Capacitive 10-Point Touch
                            1. up to 10-point touch, depending on the operating system
                            2. up to 6H hardness toughened glass panel
                            3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment
Interface Introduction
Product Show

Dimensions


Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.
