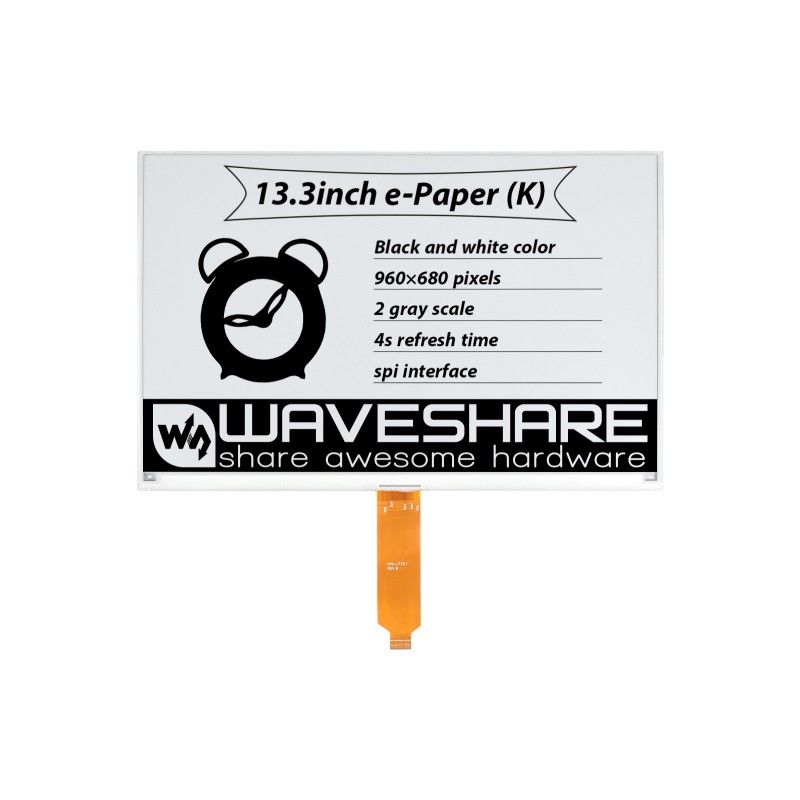

13.3inch e-Paper (K)

960×680, 13.3inch E-Ink raw display, SPI interface, without PCB

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
960×680, 13.3inch E-Ink Raw Display, SPI Interface, Without PCB
13.3" E-PAPER (K)

Low Power Consumption, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...


                        • Size13.3"
                        • Resolution960×680
                        • Viewing Angle>170°
                        • Display ColorBlack / White
                        • Grey Scale2
                        • CommunicationSPI
                        • Display PanelE-paper
                        • ExperiencePaper-like
                        • EnvironmentAmbient Light Required
                        • Display TypePassively Reflective
Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V DISPLAY COLOR black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 286.32 × 212.26 × 1.20mm FULL REFRESH TIME 5s
DISPLAY SIZE 275.52 × 195.16mm REFRESH POWER 66mW
DOT PITCH 0.287 × 0.287mm STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 960 × 680 pixels VIEWING ANGLE >170°
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

This Is Raw Display Without Driver Board

To Test And Compare This Raw Display Easily, It Is Recommended To Purchase The Following Solutions:

13.3inch e-apper (K) with driver board
13.3inch e-Paper HAT (K)
Click here to purchase
Universal e-Paper Raw Panel Driver HAT
e-Paper Driver HAT
Click here to purchase
Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless
e-Paper ESP32 Driver Board
Click here to purchase
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wireless
e-Paper ESP8266 Driver Board
Click here to purchase
Product Show
Outline Dimensions
Ekran Boyutu : 13.3 inch
