2.42inch OLED Module

2.42inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
2.42inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

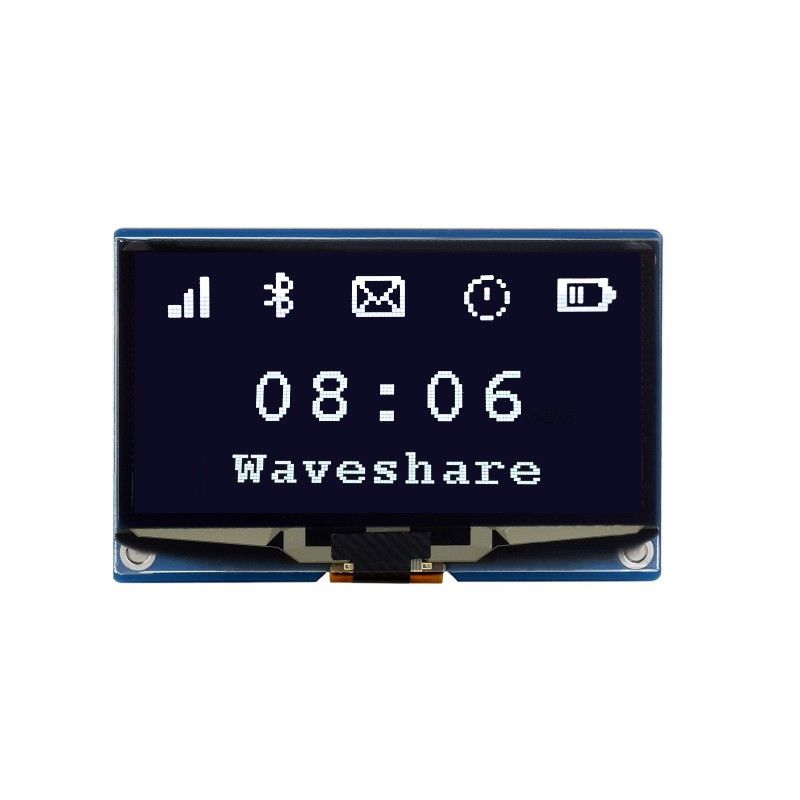

2.42inch OLED Display Module

Embedded SSD1309 Driver Chip, SPI / I2C Communication

Comes with examples for Raspberry Pi, Arduino, STM32, ESP32, Jetson Nano, etc.



    • Size2.42"
    •
    • Resolution128×64
    •
    • Display Coloroptions for white/yellow
    •
    • Display PanelOLED

  • DriverSSD1309
  •
  • InterfaceSPI/I2C
  •
  • ConnectorGH1.25 7Pin

Version Options

2.42inch OLED Module
white



2.42inch OLED Module (C)
yellow

Features At A Glance
                                  • Ultra-narrow bezel, conpact size, with onboard voltage translator
                                  • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
                                  • Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32/ESP32/Jetson Nano)
Specifications
OPERATING VOLTAGE 3.3V / 5V DISPLAY PANEL OLED
RESOLUTION 128 × 64 pixels PIXEL SIZE 0.4 × 0.4mm
COMMUNICATION INTERFACE 4-wire SPI (default) / I2C DRIVER SSD1309
DISPLAY SIZE 55.01 × 27.49mm MODULE SIZE 61.50 × 39.50mm
DISPLAY COLOR 2.42inch OLED Module: white
2.42inch OLED Module (C): yellow

Control Interface

Hardware Connection

Connecting With Raspberry Pi Via SPI Interface

Connecting With Arduino Board Via SPI Interface



Usage Example

for reference only, the STM32 board is NOT included.


Product Show
Outline Dimensions
Ekran Boyutu : 2.42 inch
