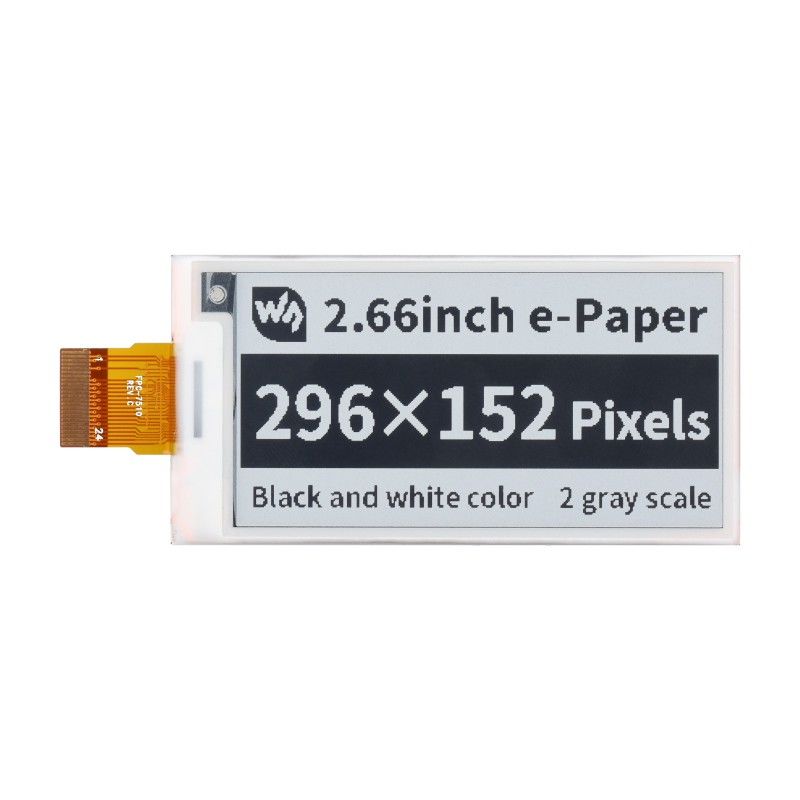

2.66inch E-Paper E-Ink Raw Display, 296×152 Pixels, Black / White Dual-Color, SPI Interface, Without PCB
2.66" E-PAPER
Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
Features At A Glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V | DISPLAY COLOR | black, white |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
| OUTLINE DIMENSIONS | 36.304 × 71.820 × 1.0mm | PARTIAL REFRESH TIME | 0.3s |
| DISPLAY SIZE | 30.704 × 60.088mm | FULL REFRESH TIME | 6s |
| DOT PITCH | 0.202 × 0.203mm | REFRESH POWER | 42.4mW(typ.) |
| RESOLUTION | 296 × 152 pixels | STANDBY CURRENT | <0.01uA (almost none) |
| VIEWING ANGLE | >170° |
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
| Ekran Boyutu | : | 2.66 inch |
