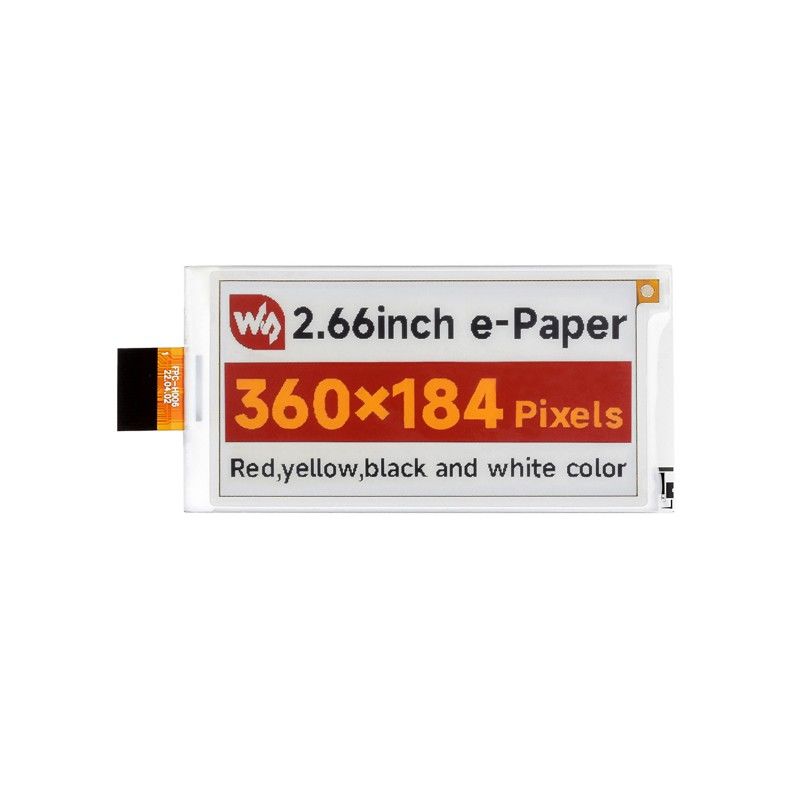

2.66inch E-Paper (G) Raw Display, 360x184, Red/Yellow/Black/White, SPI Communication
Features At A Glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V | DISPLAY COLOR | Red/Yellow/Black/White |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 2 |
| OUTLINE DIMENSIONS | 72.59 × 37.11 × 1.00mm | FULL REFRESH TIME | 26s |
| DISPLAY SIZE | 60.05 × 30.69mm | REFRESH POWER | <50mW |
| DOT PITCH | 0.1668 × 0.1668mm | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 360 × 184 pixels | VIEWING ANGLE | >170° |
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
This Is Raw Display Without Driver Board
To Test And Compare This Raw Display Easily, It Is Recommended To Purchase The Following Solutions:
 |
2.66inch e-paper (G) with driver board 2.66inch e-Paper Module (G) |
|
 |
Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT |
Outline Dimensions
| Ekran Boyutu | : | 2.66 inch |
