2.66inch e-Paper Module

296×152, 2.66inch E-Paper E-Ink Display Module, Black / White

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*

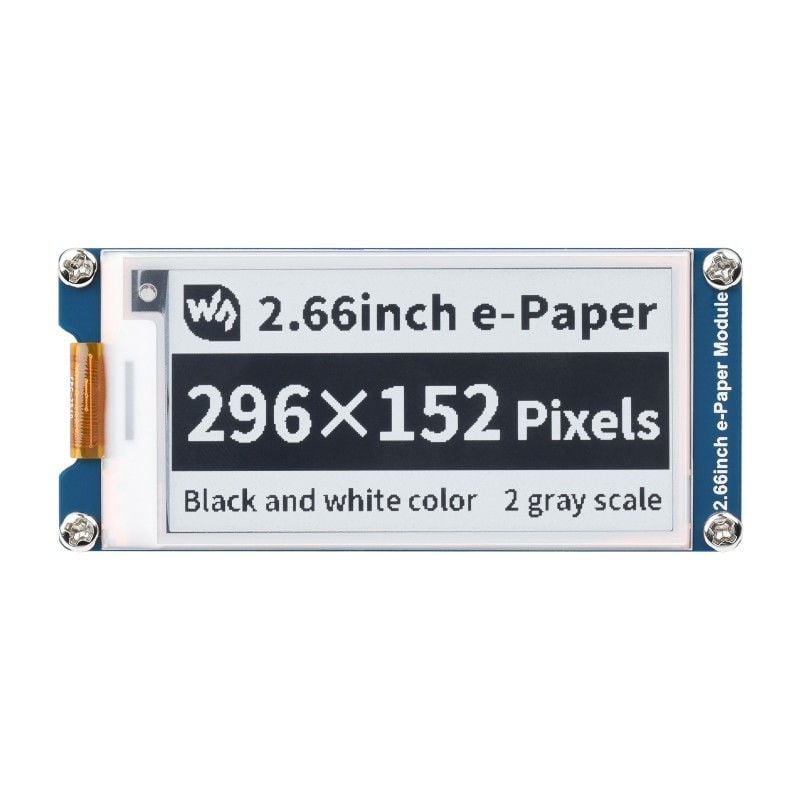

2.66inch E-Paper E-Ink Display Module, 296×152 Pixels, Black / White Dual-Color, SPI Interface
2.66" E-PAPER MODULE

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

Ideal for price tags, shelf labels, industrial instruments...


                          • Size2.66"
                          • Resolution296×152
                          • Viewing Angle>170°
                          • Display ColorBlack and White
                          • Grey Scale2
                          • CommunicationSPI
                          • Display PanelE-paper
                          • ExperiencePaper-like
                          • EnvironmentAmbient Light Required
                          • Display TypePassively Reflective
                          • RefreshingPartial Refresh Support
Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V/5V DISPLAY COLOR black, white
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 2
OUTLINE DIMENSIONS 37.0 × 83.5mm PARTIAL REFRESH TIME 0.3s
DISPLAY SIZE 30.704 × 60.088mm FULL REFRESH TIME 6s
DOT PITCH 0.202 × 0.203mm REFRESH POWER 42.4mW(typ.)
RESOLUTION 296 × 152 pixels STANDBY CURRENT <0.01uA (almost none)
    VIEWING ANGLE >170°
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Onboard SPI Control Interface

For Connecting With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, high active
Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions
Ekran Boyutu : 2.66 inch
