ÜRÜN BİLGİSİ

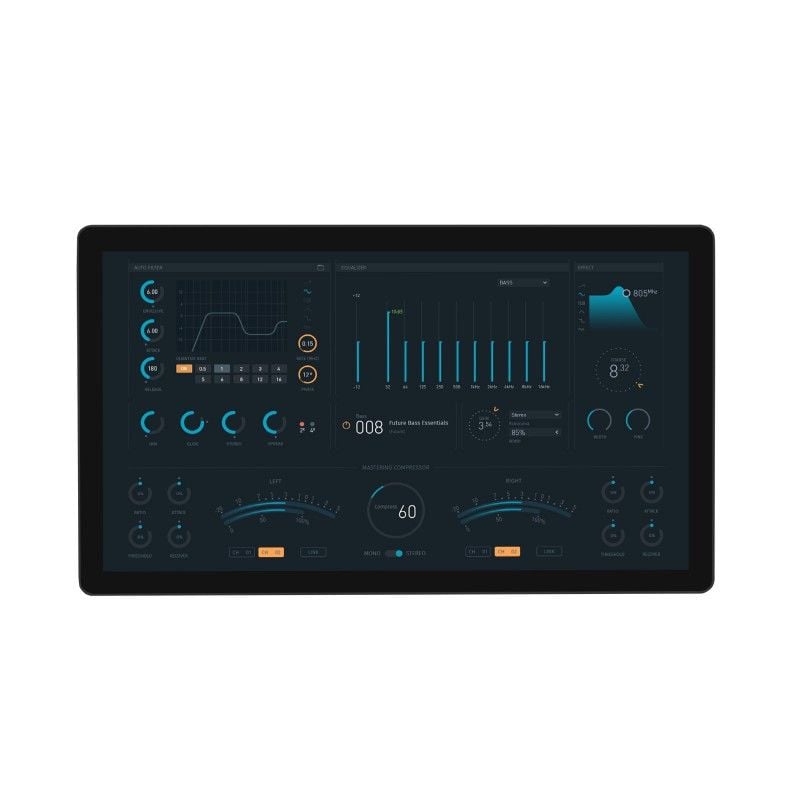

21.5inch Capacitive Touch Monitor, 1080×1920 Full HD, Optical Bonding Toughened Glass Panel, HDMI, 10-Point Touch
                            • Size21.5″
                            • Resolution1080×1920
                            • Display InterfaceHDMI
                            • Display Color16.7M
                            • Viewing Angle170°
                            • Touch TypeCapacitive
                            • Touch PortType-C
                            • Touch Points10-Point
                            • Touch PanelToughened Glass
                            • Touch Panel TechOptical Bonding
                            • Temperature Range-5 ~ 60℃
                            • OSD MenuBrightness/Contrast
                            • SoundHi-Fi Speaker
                            • EnclosureAluminum Alloy
                            • VESA Wall Mount100 × 100mm

Version Options
MODEL MAIN CONTROLLER NOTE
21.5inch FHD Monitor - the HDMI Touch Monitor only
21.5inch FHD Monitor (B) Built-in Pi4B-2GB Pi4B + HDMI Touch Monitor all-in-one
21.5inch FHD Monitor (C) Built-in CMPI4102008 CM4 + HDMI Touch Monitor all-in-one

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali, single point touch, driver free

Jetson Nano
Supports Ubuntu, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working With Raspberry Pi 4B

21.5inch FHD Monitor (B) | Built-In Pi4B-2GB



Working With Raspberry Pi Compute Module 4

21.5inch FHD Monitor (C) | Built-In CMPI4102008



Working With Jetson Nano

Working With Mini PC


Configurable Display Orientation

The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display

Wide Viewing Angle IPS Display Panel

Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC

FHD High Resolution

1080×1920 Pixels, Clearer Display

  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof
Audio Feature

Built-In Ferrite Hi-Fi Speaker, Dual-Track Support

Interface Introduction
for reference only, the monitor arm is not included.

Application Scenarios

Suitable For Industrial, Commercial, Medical And Other Applications

Dimensions


Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.
