3.2inch 320x240 Touch LCD (D)

3.2inch 320x240 Touch LCD (D), With Touch Panel And Stand-Alone Controllers

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*

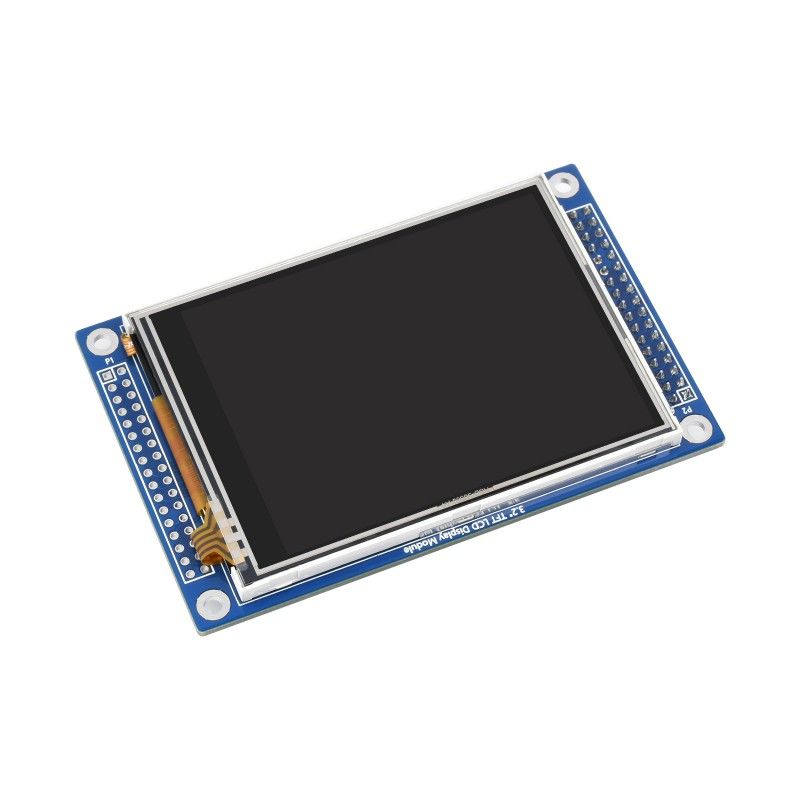

3.2 Inch 320x240 Multicolor Graphic LCD, With Touch Panel And Stand-Alone Controllers
3.2inch 320x240 Touch LCD (D)

LCD Controller ILI9341, Touch Panel Controller XPT2046

Comes With Example For STM32


    • Size3.2″
    •
    • Resolution320×240
    •
    • Display Color262K RGB

  • Touch TypeResistive
  •
  • Interface8080 Parallel + SPI
  •
  • DriversILI9341/XPT2046

Features At A Glance
  • 320 × 240 resolution LCD, with 262K color for clear color picture display
  • Onboard touch control chip, smoother touch effect than the touch panel controlled by AD pins
  • Backlight programmable, more power saving
  • Comes with development resources and manual (example for STM32)

Specifications
OPERATING VOLTAGE 3.3V RESOLUTION 320 × 240 Pixels
INTERFACE 8080 Parallel+SPI DISPLAY SIZE 48.6 × 64.8mm
DISPLAY PANEL TN PIXEL PITCH 0.198 × 0.198mm
LCD CONTROLLER ILI9341 MODULE SIZE 94.97 × 62.24mm

Interface Definition
PIN NO. SYMBOL DESCRIPTION FUNCTION
1 5V 5V power supply When powered from 5V supply,
Pin 1 & Pin 2 as power input,
Pin 33 & Pin 34 provide 3.3V output.
2 GND Ground GND
3 ~ 18 D0 ~ D15 Data pin D0-D15
19 CS LCD chip select Low active
20 RS Instruction/Data register selection RS = 1 : Data Register
RS = 0 : Instruction Register
21 WR Write WR = 0, RD = 1
22 RD Read WR = 1, RD = 0
23 RESET Reset the controller chip Low active
24 NC Not connect Not connect
25 BLVCC 5V or 3.3V Backlight VCC
26 BLGND Ground Backlight GND
27 BLCNT Backlight brightness adjustment Control the backlight brightness via PWM
28 TP_IRQ Touch panel interrupt Low level while the touch panel detects pressing
29 TP_CS Touch panel chip select Low active
30 TP_SCK Touch panel SPI clock connects to SPI SCK
31 TP_SI Touch panel data input connects to SPI MOSI
32 TP_SO Touch panel data output connects to SPI MISO
33 3.3V 3.3V power supply When powered from 3.3V supply,
Pin 33 & Pin 34 as power input,
Pin 1 & Pin 2 keep NC.
34 GND Ground

Note : this product should work with MCUs with 2.2V~3.6V IO voltage ONLY.


Product Show

Dimensions
Ekran Boyutu : 3.2 inch
