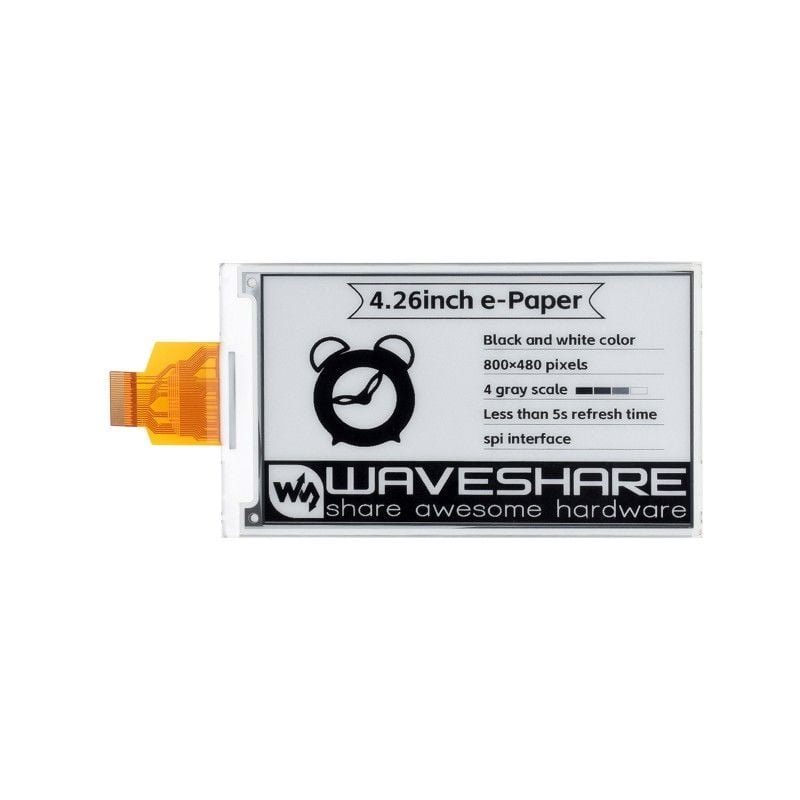

4.26inch E-Paper Raw Display, 800x480, Black/White, SPI Communication
Features At A Glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE | 3.3V | DISPLAY COLOR | Black/White |
---|---|---|---|
INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 4 |
OUTLINE DIMENSIONS | 129.33 × 62.37 × 0.93mm | FULL REFRESH TIME | 4s |
DISPLAY SIZE | 92.80 × 55.68mm | PARTIAL REFRESH TIME | 0.7s |
DOT PITCH | 0.116 × 0.116mm | REFRESH POWER | <35mW |
VIEWING ANGLE | >170° | STANDBY CURRENT | <0.01uA (almost none) |
RESOLUTION | 800 × 480 pixels |
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
This Is Raw Display Without Driver Board
To Test And Compare This Raw Display Easily, It Is Recommended To Purchase The Following Solutions:
4.26inch e-apper with driver board 4.26inch e-Paper HAT |
Click here to purchase | |
Universal e-Paper Raw Panel Driver HAT e-Paper Driver HAT |
Click here to purchase | |
Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wireless e-Paper ESP32 Driver Board |
Click here to purchase | |
Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wireless e-Paper ESP8266 Driver Board |
Click here to purchase | |
Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEO e-Paper Shield |
Click here to purchase |
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Outline Dimensions
Ekran Boyutu | : | 4.26 inch |
