4.26inch e-Paper HAT

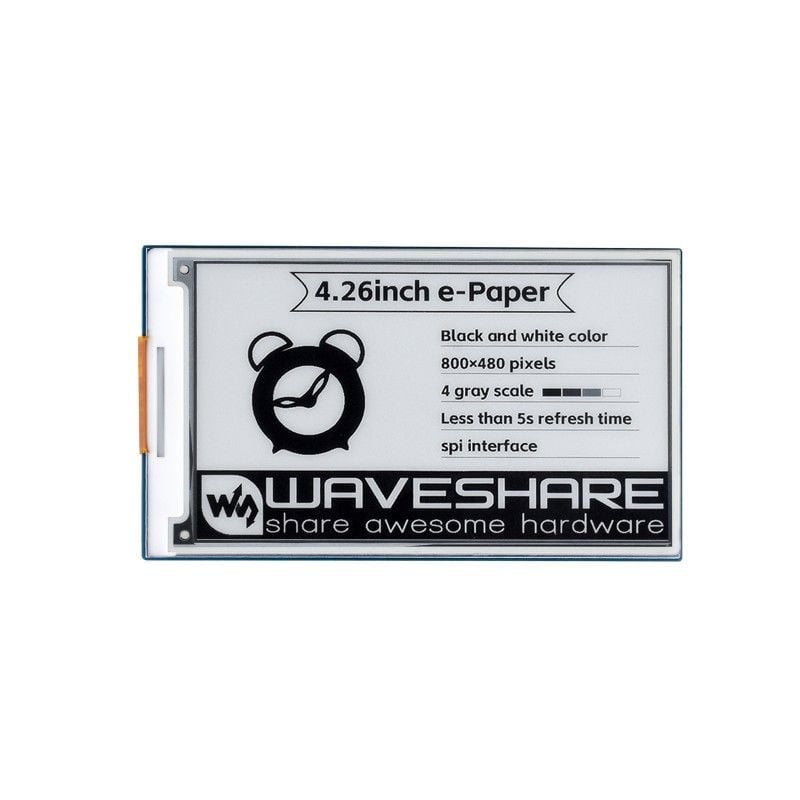

4.26inch e-Paper display HAT, 800x480, Black/White, SPI Interface

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
4.26inch E-Paper Display HAT, 800x480, Black/White, SPI Interface
4.26″ E-Paper HAT

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...




                            • Size4.26″
                            • Resolution800×480
                            • Viewing Angle>170°
                            • Display ColorBlack/White
                            • Grey Scale4
                            • CommunicationSPI
                            • Display PanelE-paper
                            • ExperiencePaper-like
                            • EnvironmentAmbient Light Required
                            • Display TypePassively Reflective
                            • RefreshingPartial Refresh Support
Features At A Glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
OPERATING VOLTAGE 3.3V/5V DISPLAY COLOR Black/White
INTERFACE 3-wire SPI, 4-wire SPI GREY SCALE 4
OUTLINE DIMENSIONS 107 × 64mm FULL REFRESH TIME 4s
DISPLAY SIZE 92.80 × 55.68mm PARTIAL REFRESH TIME 0.7s
DOT PITCH 0.116 × 0.116mm REFRESH POWER <35mW
VIEWING ANGLE >170° STANDBY CURRENT <0.01uA (almost none)
RESOLUTION 800 × 480 pixels
Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.


Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards

* for reference only, the Raspberry Pi in the picture is NOT included


Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

PWR Power on/off control
BUSY Busy status output pin
RST External reset, low active
DC Data/Command selection (high for data, low for command)
CS SPI chip selection, low active
CLK SPI SCK pin
DIN SPI MOSI pin
GND Ground
VCC Power (3.3V / 5V input)

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs


Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...


Outline Dimensions
Ekran Boyutu : 4.26 inch
