4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional

Kategori

LCD , OLED

Marka

Waveshare

Stok Kodu

4.3HP-QLED

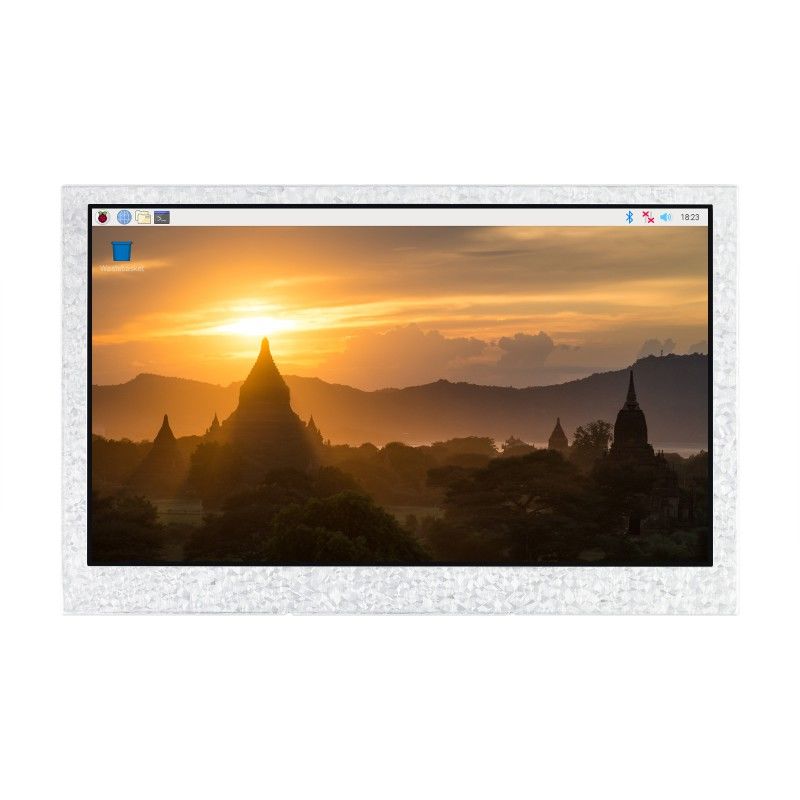

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin and Light Design, Touch Function Optional

Teklif İsteyiniz

Yorum
Yaz

ÜRÜN BİLGİSİ

4.3inch DSI Display, 800 × 480, IPS/QLED Panel, Thin And Light Design, Touch Function Optional

4.3″ DSI Dispaly/Touch Display

Integrated Structure | Thin And Light Screen Design

- - - - Size4.3″

        Resolution800×480

        Display InterfaceDSI

        Display PanelIPS/QLED

        Viewing Angle160°

        Touch TypeCapacitive (optional)

        Touch Points5-Point (optional)

        Touch InterfaceI2C (optional)

        Touch PanelToughened Glass
        (optional)

        ConsumptionLow Power

        Certification 1RoHS2.0

        Certification 2CE

Version Options

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Integrated Structure Design

DSI One-Cable Communication For Embedding Engineering Applications Quickly
Provide Secondary Development Resources To Help Simple Development

Working With Raspberry Pi 4B Via DSI Interface

Working With Raspberry Pi 3B+ Via DSI Interface

for reference only, the Raspberry Pi boards are not included.

Thinner And More Space Saving

Integrate the driver circuit into an FPC, only needs 5mm thickness space

IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle

QLED Quantum Dot Technology

Wider Color Gamut

Color Gamut Of This QLED Display Is Up To: SRGB 90%, NTSC 78%

* This function is only available on the QLED version

More Pure Chroma

Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid

* This function is only available on the QLED version

Longer Lifetime

Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

* This function is only available on the QLED version

5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch
