Kategori
OLED , LCD
Marka
Stok Kodu
50H-800480-IPS-CT

5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch Function Optional

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
5inch DSI Display, 800 × 480, IPS, Thin And Light Design, Touch Function Optional
5″ DSI Dispaly/Touch Display

Integrated Structure | Thin And Light Screen Design



                              • Size5″
                              • Resolution800×480
                              • Display InterfaceDSI
                              • Display PanelIPS
                              • Viewing Angle160°
                        • Touch TypeCapacitive (optional)
                        • Touch Points5-Point (optional)
                        • Touch InterfaceI2C (optional)
                        • Touch PanelToughened Glass
                          (optional)
                        • ConsumptionLow Power
  • Certification 1RoHS2.0
  • Certification 2CE


Version Options

50H-800480-IPS
IPS Display



50H-800480-IPS-CT
IPS Touch Display

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports Pi 4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*

* some CM3/3+/4 base boards require extra adapter cable

Integrated Structure Design

DSI One-Cable Communication For Embedding Engineering Applications Quickly
Provide Secondary Development Resources To Help Simple Development

Working With Raspberry Pi 4B Via DSI Interface





Working With Raspberry Pi 3B+ Via DSI Interface


for reference only, the Raspberry Pi boards are not included.

Thinner And More Space Saving

Integrate the driver circuit into an FPC, only needs 5mm thickness space


IPS Display Panel

Excellent Display Performance With 160° Wide Viewing Angle


5-Point Capacitive Touch

Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch

* This function is only available on the Touch Display version, the actual touch points depends on the operating system


Adjustable Brightness Via Software

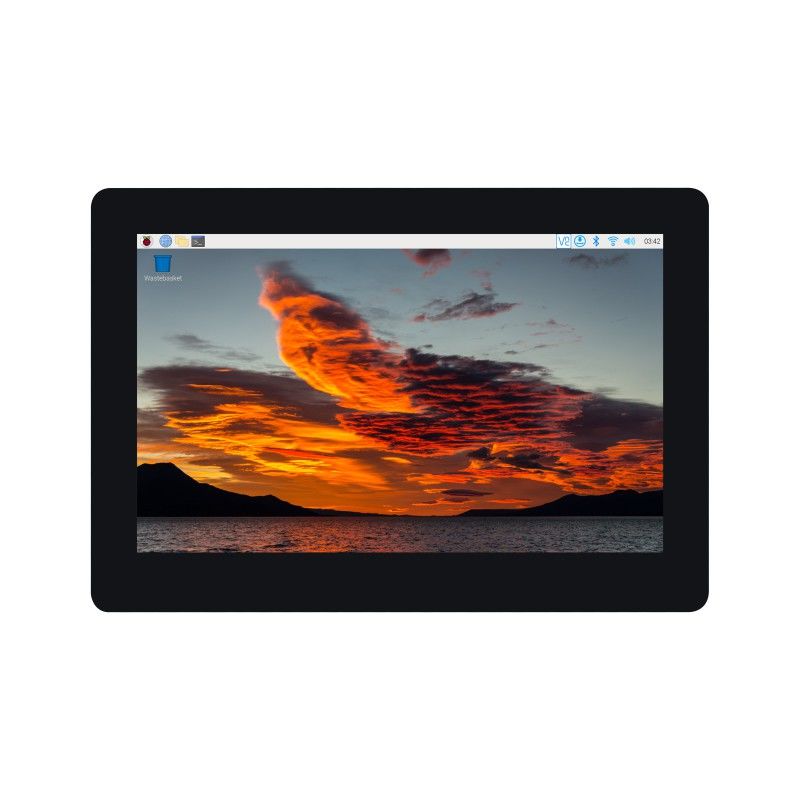

Product Show

Dimensions
Ekran Boyutu : 5 inch
Bu ürüne ilk yorumu siz yapın!
5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch Function Optional 50H-800480-IPS-CT
5inch DSI Display, 800 × 480, IPS, Thin and Light Design, Touch Function Optional
