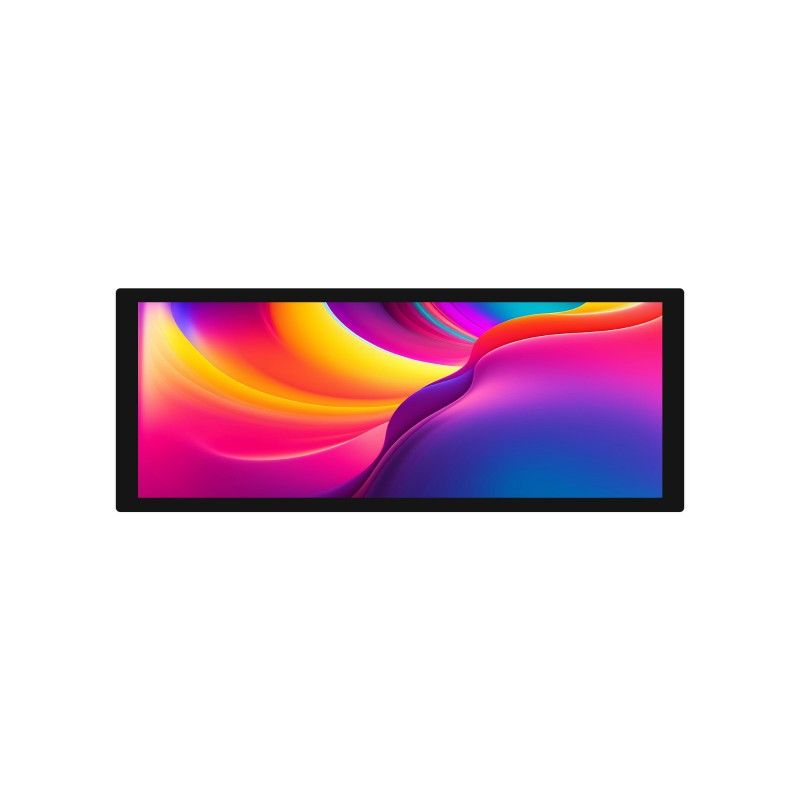

9.3inch Capacitive Touch Display, High Brightness, 1600×600, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS

9.3inch Capacitive Touch Display, High Brightness, 1600×600, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ
9.3inch Capacitive Touch Display, High Brightness, 1600×600, Optical Bonding Toughened Glass Panel, HDMI Interface, IPS
9.3″ Touch Display

High Resolution | Multi-Point Touch | Full Color



                          • Size9.3″
                        • Resolution1600×600
                        • Display InterfaceHDMI
                        • Display PanelIPS
                        • Viewing Angle178°
                        • Touch TypeCapacitive
                        • Touch Points10-Point
                        • Touch PortUSB Type-C
                        • Touch PanelToughened Glass
                        • Touch Panel TechOptical Bonding
                        • OSD MenuBrightness/Contrast
                        • BrightnessSupports DCC/CI
                          control
                        • Brightness800cd/m²
                        • Audio Output 13.5mm Jack
                        • Audio Output 24PIN Header

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Nano

Working With PC

for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Capacitive 10-Point Touch
                          1. up to 10-point touch, depending on the operating system
                          2. up to 6H hardness toughened glass panel
                          3. Optical Bonding, display well and dustproof

Supports DDC/CI Brightness Adjustment
Interface Introduction
Product Show

Dimensions


Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Ekran Boyutu : 9.3 inch
