Kategori
LCD
Marka
Waveshare
Stok Kodu
9.7inch 768x1024 LCD

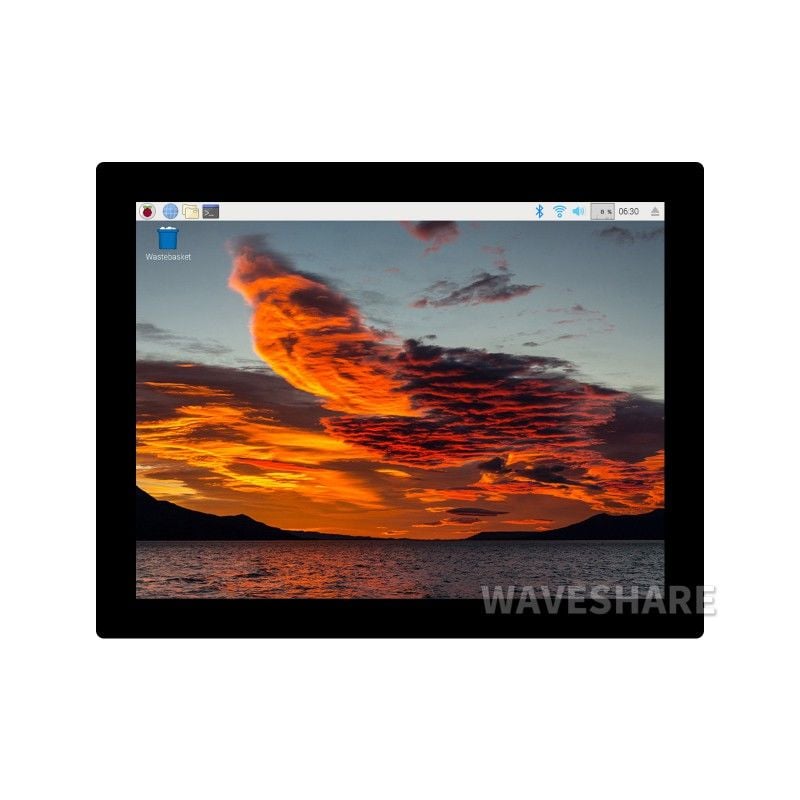

9.7inch Capacitive Touch Display, 768×1024, Toughened Glass Panel, HDMI Interface, IPS Panel, 10-Point Touch

9.7inch Capacitive Touch Display, 768×1024, Toughened Glass Panel, HDMI Interface, IPS Panel, 10-Point Touch

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
ÜRÜN BİLGİSİ
9.7inch Capacitive Touch Display, 768×1024, Toughened Glass Panel, HDMI Interface, IPS Panel, 10-Point Touch
9.7″ Capacitive Touch Display

High Resolution | Multi-Point Touch | Full Color



                          • Size9.7″
                          • Resolution768×1024
                          • Display InterfaceHDMI
                          • Display PanelIPS
                          • Viewing Angle178°
                          • Touch TypeCapacitive
                          • Touch Points10-Point
                          • Touch PortUSB Type-C
                          • Touch PanelToughened Glass
                          • OSD MenuBrightness/Contrast
                          • Audio Output 13.5mm Jack
                          • Audio Output 24PIN Header
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.

Device & System Support


Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Board
Supports Ubuntu, single point touch, driver free

PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

Working With Raspberry Pi 5

Working With Raspberry Pi 4B

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable

Working With Jetson Series Board

Working With PC

for reference only, the above controller boards or host are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel

Supports Backlight Adjustment Via Software
Interface Introduction

Dimensions


Support Touch Screen Customization

Support The Following Ways To Customize The Touch Screen Display In Bulk Order

Over A Decade
Waveshare Grows With Display

* Waveshare has been focusing on display design for over 10 years.

Ekran Boyutu : 9.7 inch
