ZD-DR-900/2100-20dBm

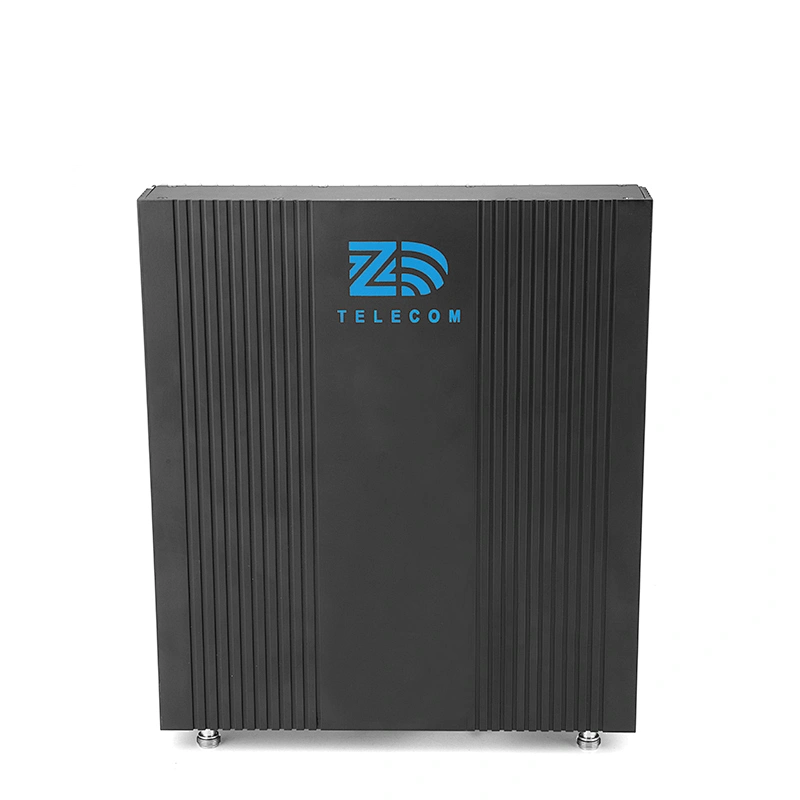

900&2100 Dual band PICO Repeater 200mW for signal coverage

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*
Product Description
  1. Power Supply and Mechanical Specifications
Power Supply AC 100~240V, 50/60Hz  Adaptor
Dimension and Weight 268*220*50mm,≤4.5kg
Power Consumption ≤35W
Temperature -25~+55
Humidity ≤95%
Environmental Class IP40
RF Connector MS_4.3-10-Female, 50ohm
MTBF 50000 hours
Monitor Interface Local Monitor: Manually control, operating status: LED
Product number   900&2100Dual band Pico selective repeater,200mW
  1. Electronic Specifications
Item Specification
Downlink Uplink
Frequency Range  900 925 - 960MHz 880 -915MHz
2100 2110 - 2170MHz 1920- 1980MHz
bandwith Customized by customer
Output Power (Max.) 23±2dBm  20±2dBm
Gain(Max.) 70±3dB 70±3dB
Gain Adjustable Range/Step 25dB/1dB
Gain Adjustable Error Gain adjustable range is 0~20dB, error≤1dB; ≥21dB, error≤1.5dB
ALC When adding ≤10dB at max. Output level, output variation ≤±2dB,
When adding >10dB, output variation ≤±2dB or be off.
NF 6dB at max. gain
Time Delay ≤5.0μs
VSWR ≤2.0
Ripple in band ≤4dB
Restraint out of the band 2.5MHz≤ f_offset<5 MHz          ≥40dB
5 MHz ≤f_offset                   60dB
Spurious Emission Complies with 3GPP TS 36.106 and 3GPP TS 36.143
Spectrum Emission Mask Complies with 3GPP TS 36.106 and 3GPP TS 36.143
ACRR Complies with 3GPP TS 36.106 and 3GPP TS 36.143
Frequency Stability 0.05ppm
EVM ≤8%
