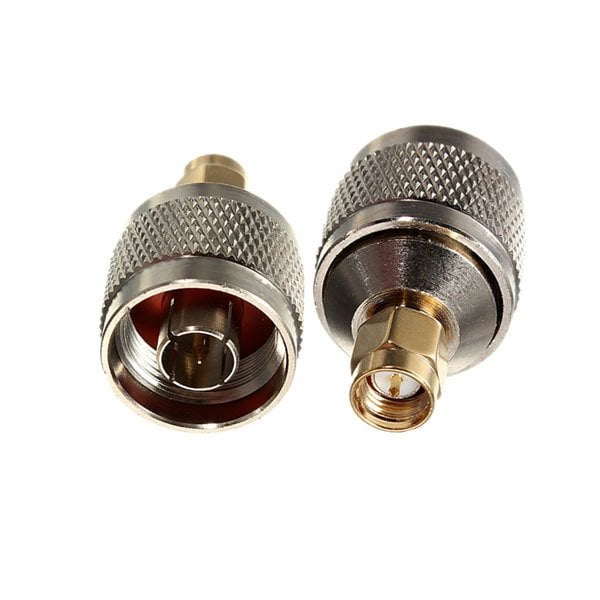

N to SMA adapters are available with male or female genders and in 50 Ohm impedance. | |
These N to SMA adapters include straight body style in standard polarity. | |
This adapter operates from 0-6 GHz.The SMA connector mates mechanically with commercially | |
available 3.5mm and 2.92mm (K)connectors. | |
It provides excellent VSWR of 1.2:1 maximum. | |
RF adapters can be used to enable connections between two connector types that would otherwise | |
not mate. |
Electrical Specifications | |
Connector Series 1 | SMA |
Connector Gender 1 | Male |
Connector Polarity 1 | Standard |
Connector Impedance 1 | 50 Ohm |
Connector Series 2 | N |
Connector Gender 2 | Male |
Connector Polarity 2 | Standard |
Connector Impedance 2 | 50 Ohm |
Frequency, Min | DC |
Frequency, Max | 6 GHz |
Adapter Body Style | Straight |
Connector Mount Method 1 | None |
Connector Body Material 1 | Brass |
Connector Body Plating 1 | Nickel |
Connector Mount Method 2 | None |
Konektör Türü - 1 | : | SMA - Male |
Konektör Türü - 2 | : | N - Male |
