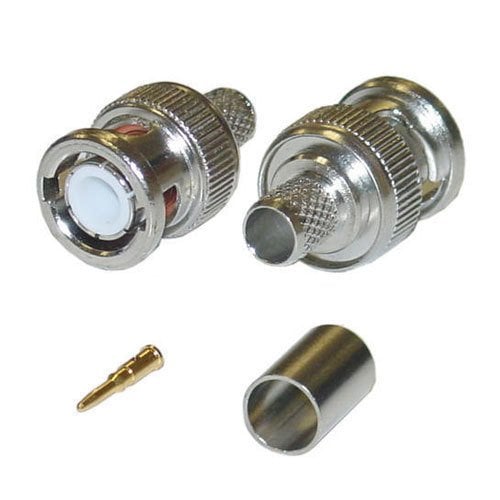

| BNC RF and microwave coaxial connectors and adapters are available as male and female cable | |
| connectors for cable assemblies using cables with diameters from 0.150 to 0.250 | |
| inches (connector versions are also available for cables with diameters from 0.094 to 0.420 inches), | |
| and as receptacles with panel, bulkhead, press-fit,and threaded mountings. | |
| Our coaxial connectors and adapters are constructed of brass with heat-treated,beryllium-copper, | |
| female center contacts, with a variety of finish options including silver, nickel, albaloy, or gold plating in | |
| any combination. |
| Electrical Specifications | |
| Frequency | DC to 4 GHz |
| Voltage Rating | 500 VRMS (sea level) |
| Nominal Impedance | 50 ohms |
| Orientation | Straight |
| DWV | 1500 VRMS at 60 Hz (sea level) |
| Insulation Resistance | 5000 megaohms min. |
| Temperature Range | -65°C to +165°C |
| Termination Style | Cable crimp |
| MATERIALS | |
| Dielectrics | PTFE Fluorocarbon, Type 1, GR1, CLA |
| Contacts (Female) | Beryllium copper |
| Male Outer Contacts | Beryllium copper, Brass |
| Gaskets | Silicone rubber, GR 50-60 |
| Locking Ring | Phosphor bronze, spring temper |
| Crimp Sleeves | DHP copper, CDA-122, soft temper |
| Other Metal Parts | Brass |
| PLATING | |
| Center Contacts | Silver, gold |
| Metal Parts | Nickel, silver, albaloy |
