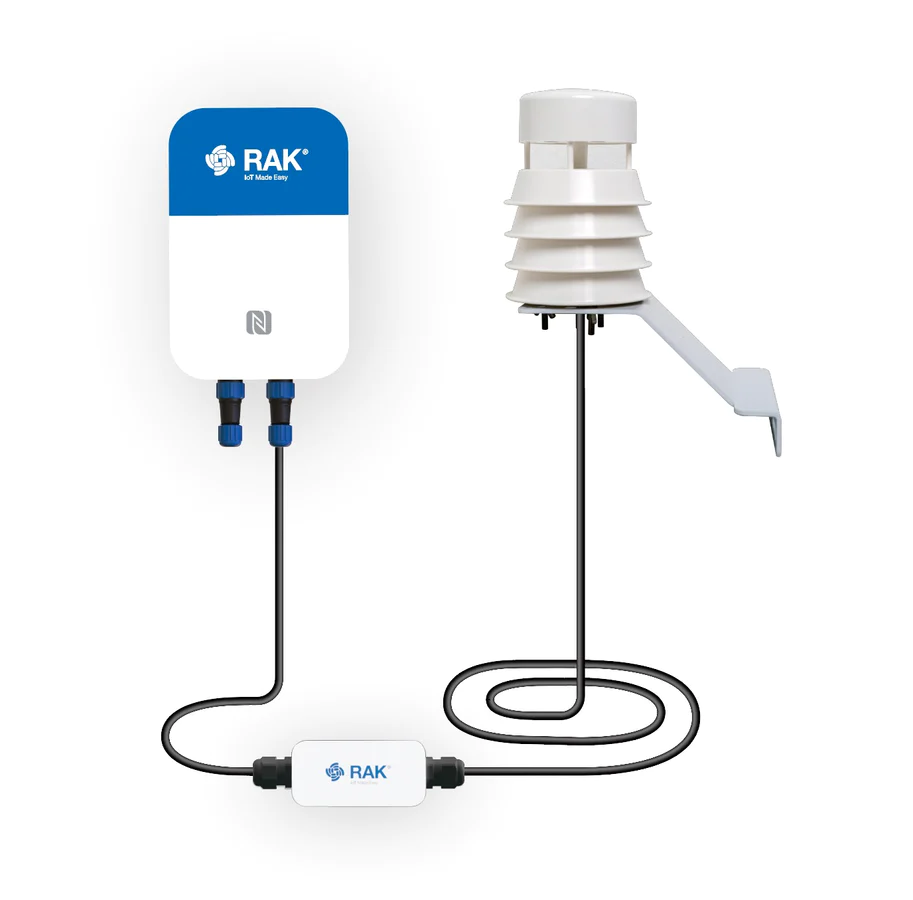

Weather Station Monitoring , Temperature, Humidity, Wind Speed Sensor
Description
With Sensor Hub weather station, you can monitor outdoor environmental parameters. It is suitable for Smart Cities, Smart Farms, Smart Agricultural, environmental monitoring, and other use cases.
The weather station is equipped with high-precision sensors that measure wind speed and direction, atmospheric pressure, humidity, and temperature.
The Sensor Hub weather station guarantees long-term metrological monitoring with its robust design.
The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the extension cable.
Note: Sensor Hub with Sensor Probe IO and connected sensor cannot be powered on batteries. You need to use the included power supply only.
The Sensor Hub has two variants based on the communication type - LoRaWAN only and LoRaWAN+NB IoT. SensorHub's NB-IoT module supports two types of LTE (Long-Term Evolution) categories, namely CAT M1 and CAT NB2. CAT M1 offers higher data rates and lower latency, while CAT NB2 provides ultra-low power consumption and greater coverage, making it an ideal choice for devices that operate on batteries and require long-term connectivity.
Features
- LoRaWAN®/NB-IoT communication
- Precise measurement of the parameters
- IP65 protection
- External DC power supply (optional)
- Solar panel power source (optional)
|
Measure item |
Principle |
Range |
Resolution |
Accuracy |
|
Wind speed |
Ultrasonic |
0-40m/s |
0.01m/s |
±0.5+2%FS |
|
Wind direction |
Ultrasonic |
0-359º |
1° |
±3° |
|
Atmospheric temperature |
MEMS |
-40-+100℃ |
0.1℃ |
±0.5℃ |
|
Atmospheric humidity |
MEMS |
0-100%RH |
0.1%RH |
±3% |
|
Atmospheric pressure |
MEMS |
10-1100hPa |
0.1hpa |
±1.5hPa |
Included in the package:
- 1 x Sensor Hub
- 1 x Sensor Probe IO
- 1 x Micro Weather sensor
- 1 x Power supply for the Sensor Hub
- 1 x Mounting kit for the Micro Weather sensor
Documentation
- Sensor Hub Datasheet
- Sensor Probe IO Datasheet
- Quick Start Guide
- Installation Guide
