Soil pH Monitoring , pH monitoring Sensor
Description

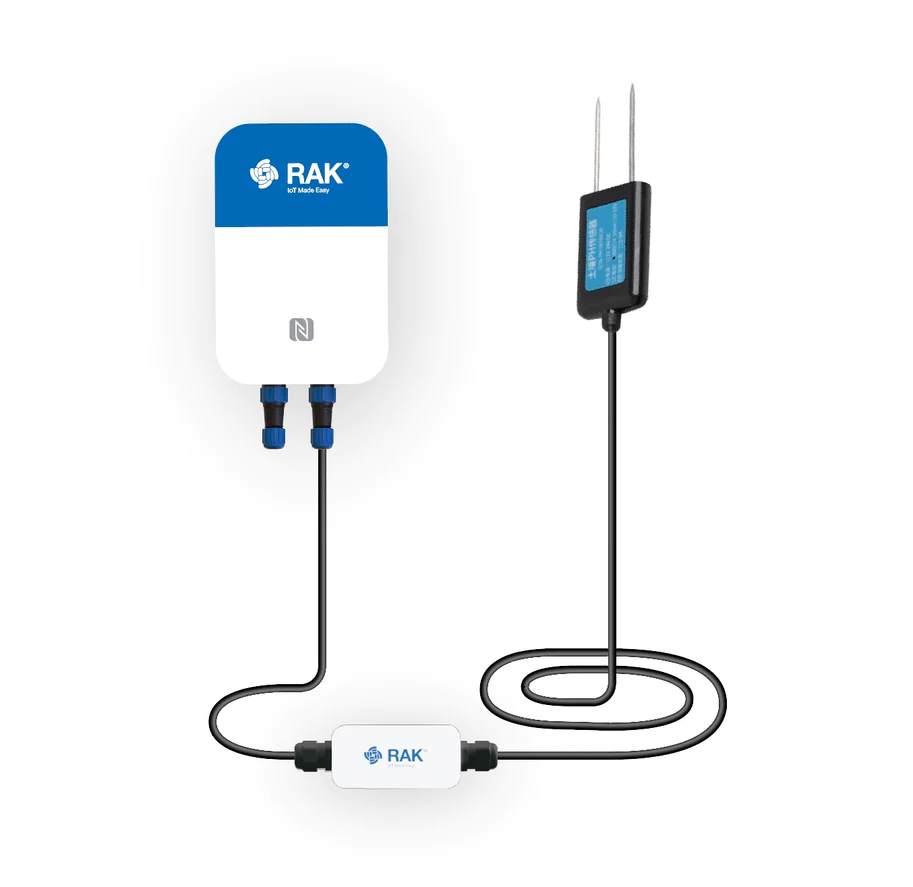

Sensor Hub pH Value Monitoring is widely used in applications requiring ph monitoring, such as soil ph measurement to determine soil fertility. The product can be widely used in rice fields, greenhouse cultivation, vegetable cultivation, orchard nursery, flowers, soil research, and more.
The form factor of the Sensor Hub allows for multiple and/or different sensors to be connected at the same time, creating a full and versatile soil condition monitoring system. The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the Extension cable.
Note: Sensor Hub with Sensor Probe IO and connected sensor cannot be powered on batteries. You need to use the included power supply only.
The Sensor Hub has two variants based on the communication type - LoRaWAN only and LoRaWAN+NB IoT. SensorHub's NB-IoT module supports two types of LTE (Long-Term Evolution) categories, namely CAT M1 and CAT NB2. CAT M1 offers higher data rates and lower latency, while CAT NB2 provides ultra-low power consumption and greater coverage, making it an ideal choice for devices that operate on batteries and require long-term connectivity.
Features
- LoRaWAN/NB-IoT communication
- Durable design for outdoor applications
- Accurate and reliable measurements
- External DC power supply (optional)
- Solar panel power source (optional)
|
Parameter |
Value |
|
Measure range |
0~1999mg/kg |
|
Accuracy |
±2%F.s |
|
Resolution |
1mg/kg (mg/l) |
|
Working temperature |
+5~+45℃ |
|
Working humidity |
5~95%RH, no condensation |
Included in the package:
- 1 x Sensor Hub
- 1 x Sensor Probe IO
- 1 x pH Sensor
- 1 x Power supply for the Sensor Hub
Documentation
- Sensor Hub Datasheet
- Sensor Probe IO Datasheet
- Quick Start Guide
- Installation Guide
