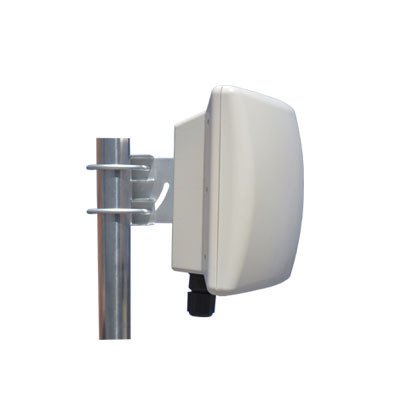

MRTK-D24V16-20, 2.4GHz Panel Antenna, 16dBi,SMA-Female
| 2.4G Communication SystemSupport IEEE802.11a point to point, point to multipoint high gain, | |
| high F/B ratio low profile, Small size, Light weight with pigtail with customer mounting plate. | |
| It is grey in color with a textured finish. ABS radome finish, color and texture can be provided to | |
| complement and blend within any environment. | |
| A variety of standard and custom mounting configurations are available. |
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 16dBi |
| F/B Ratio | ＞25dB |
| Horizontal Beam width | 30° |
| Vertical Beam width | 30° |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | SMA Female |
| Antenna Radome Material | ABS |
| Mount way | Pole |
| Mechanical | |
| Antenna Dimension | 200x200x95mm |
| Weight | 500g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 10dBi |
