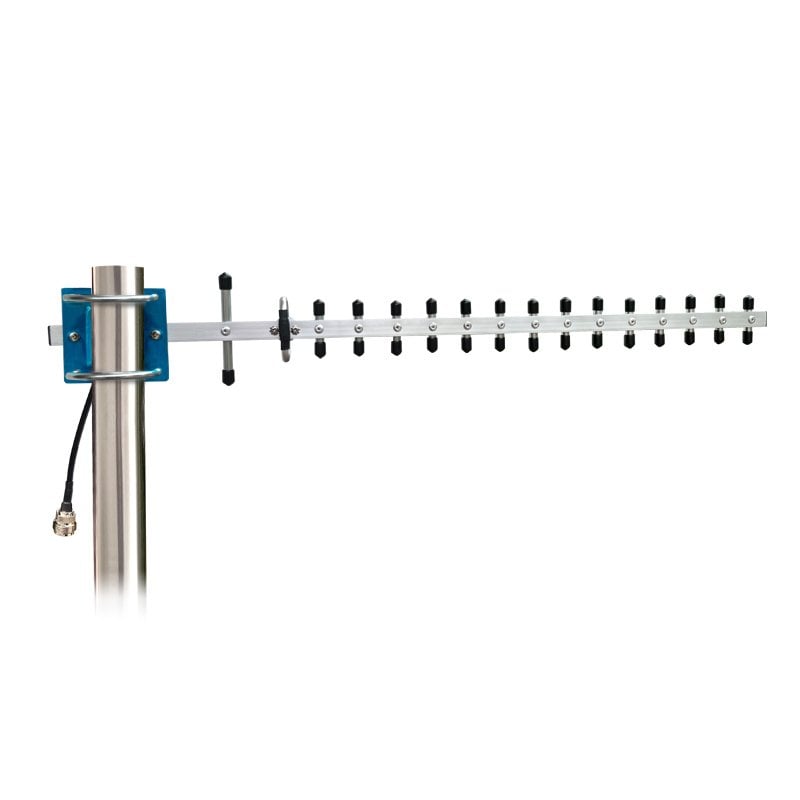

Yagi are factory assembled and adjusted for easy installation. | |
They feature light-wall tubing elements and machined aluminum blocks for the boom-to-element | |
junctions.Fourteen element models are available.Economical,lightweight installation and good | |
performance. |
Electrical | |
Frequency Range | 2400-2483MHz |
Band width | 83MHz |
F/B Ratio | >18dB |
Gain | 16dBi |
V.S.W.R | ≤1.5 |
Radiation | Direction |
Horizontal Beam width | 36° |
Vertical Beam width | 35° |
Polarization | Vertical |
Lightning Protection | DC Grounded |
Maximum Input Power | 50W |
Impedance | 50Ώ |
Connector | N Female |
Cable Type | RG58U |
Cable Length | 30cm |
Antenna Radome Material | Aluminum |
Mount way | Pole |
Diameter of Installation Pole | Φ30-50mm |
Mechanical | |
Antenna Dimension | 650x95x45mm |
Weight | 340g |
Operating Temperature | -40℃ to+70℃ |
Rated Wind Velocity | 60m/s |
RoHS Compliant | YES |
Kazanç | : | 10dBi |
