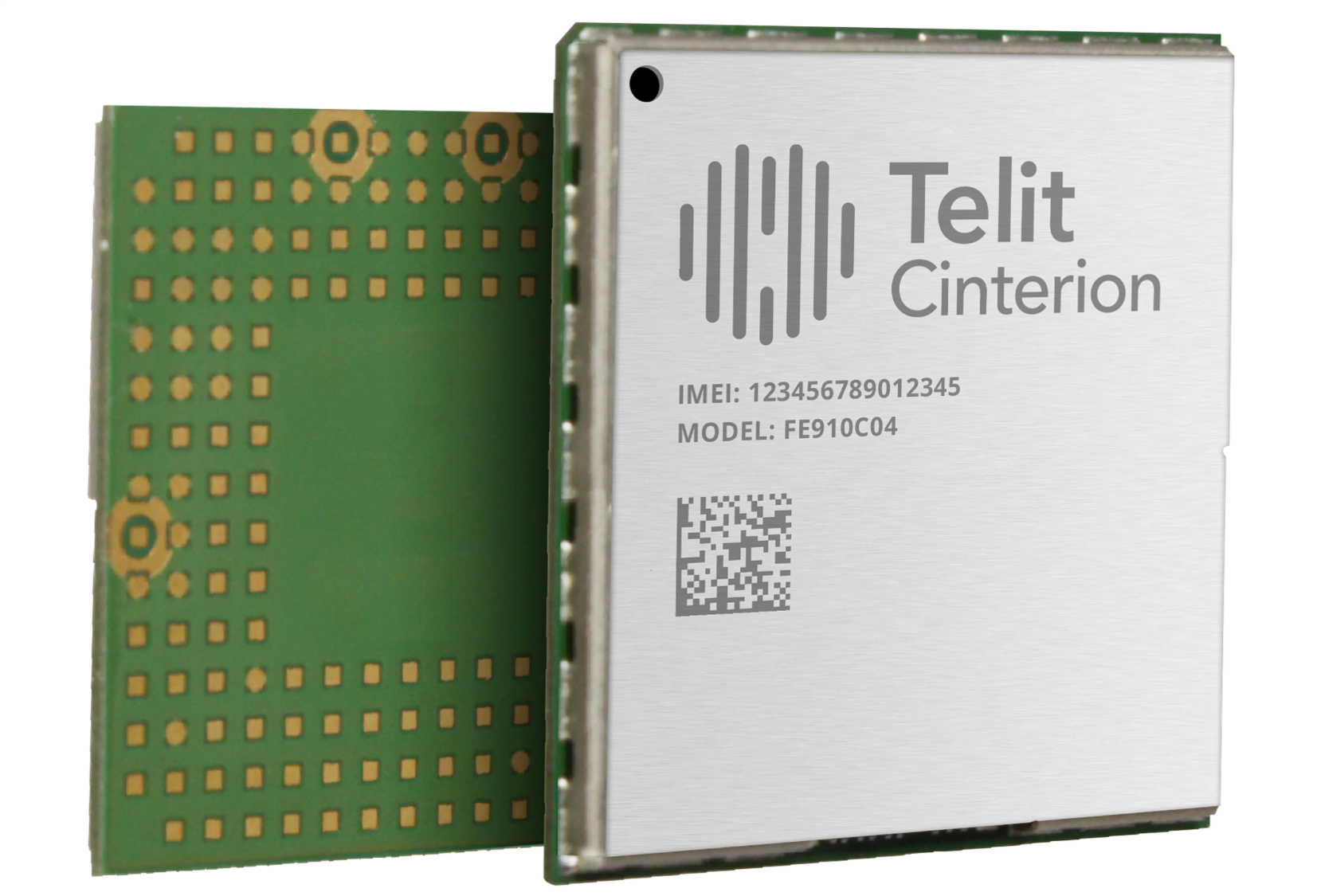

FE910C04 , 5G Modül , 5G Rel 17 / LTE Cat 4
The FE910C04 enable 5G mid-speed connectivity relying on the latest 3GPP Release 17 RedCap technology. It levels up performance and efficiency compared to LTE, promising the highest level of flexibility by offering customers to move to a secure 5G future easily.
The FE9100C04 is industrial grade, rugged, suitable for global use, with enhanced uplink performance, power saving features, and with LTE Cat 4 fallback for best coverage.
- RedCap fills the gap between high-speed mobile broadband devices and extremely low-bandwidth devices
- First generation 5G RedCap IoT modules offer worldwide coverage with LTE Cat 4 fallback and flexible form factors
- The module integrate perfectly with Telit Cinterion connectivity and services, encompassing NExT™ data plans, connectivity activation, AppZone and OneEdge™
Product Description
Resilient, low latency, mid-speed 5G for the future intelligent edge, the FE910C04 series enables performance and efficiency improvements, promising an easy migration from existing LTE to a secure and lasting 5G future.
The FE910C04 relies on the latest 3GPP Release 17 Redcap technology, features a compact, industrial grade, rugged design and is suitable for global use with fallback to LTE Cat.4 for best possible coverage.
- Global and regional SKUs and an optional eSIM onboard for seamless 5G connectivity
- Secure by design, strengthened core functions for improved end-to-end security
- Added interfaces for maximizing platform leverage
- Powered by Telit Cinterion’s value added services, encompassing NExT™ data plans, connectivity activation, AppZone processing and OneEdge™ services
RedCap fills the gap between enhanced mobile broadband (eMBB) devices and extremely low-bandwidth, massive Machine Type Communication (mMTC) devices.
Applications:
- Video surveillance and monitoring
- Industrial Routers and Gateways
- EV Charging infrastructure
- Machine Telematics
Form Factor Family
The FE910C04 is a member of Telit Cinterion’s flagship xE910 module family. It delivers 5G NR radio access technology in the 28.2 x 28.2 x 2.2 mm family form factor.
Product Features:
- 5G Sub.6 FDD and TDD operation in 5G NR Standalone
– DL: 220 Mbps
– UL: 100 Mbps - LTE Cat 4
– DL: 150 Mbps
– UL: 50 Mbps - Rx Diversity and MIMO DL 2×2
- VolTE/VoNR Support
- SMS over IMS
- Built in UDP/TCP/FTP/SMTP stack
- IPv4/IPv6 Stack
- Control via AT commands according to 3GPP
- TS 27.005, 27.007 and Telit Custom AT Commands
- SIM application Tool Kit 3GPP TS 51.014
- OMA-DM Telit Software Management
- Simultaneous support for GPS, GLONASS, Beidou, Galileo, QZSS
Certifications:
Regulatory/Industry Certifications:
- FCC, CE/RED, ISED, RCM, NCC, JATE-TELEC, GCF/PTCRB
Carrier Certifications:
- AT&T incl. FirstNet, TMOUS, VzW, Vodafone, Telstra, KDDI, NTT Docomo, Softbank
Dimensions:
- 28.2 x 28.2 x 2.2 mm
Operating Temperature Range:
- -40° C to +85°C
Electrical specifications:
- USB 2.0 HS / HSIC interface up to 480 Mbps
- PCIe Gen2.0, also for external WiFi/BT connectivity
- SGMII for external ethernet transceiver
- Serial/peripheral interfaces – SPI, I2C, UART
- Audio interface – I2S/PCM
- GPIOs
- 2x Dual voltage 1.8/3V USIM interfaces
- Optional eSIM
- RF pad, RX Div. & MIMO pad
- GNSS pad
- Supply Voltage Range: 3.4 – 4.2V
Connectivity Solutions
NExT™ powered by Telit Cinterion is a cloud native core network. Telit Cinterion is a full tier 1 MVNO, enabling new and enhanced turnkey connectivity solutions and device management services. With this IoT network, you can deploy powerful, intelligent Global roaming with multi -IMSI and localization capabilities (eUICC) on more than 600 mobile carriers in 200+ countries in 2G/3G/4G/CAT-M/NB-IoT & 5G. The NExTPro our Connectivity Management Portal
provides full visibility, monitoring & analytics.
In addition, Telit Cinterion offers Connectivity Activation, a remote SIM provisioning service that leverages latest eSIM technology to simplify and optimize connectivity provisioning and M(V)NO selection. Connectivity Activation digitalizes SIM provisioning and makes the IoT journey seamless and efficient for your devices, from the factory to the last day of operation.
Drivers Support:
- Drivers for Windows® 11
- Driver for Linux
- Android RIL
