FE990B34/40 , 5G Modül , 5G/LTE-Advanced

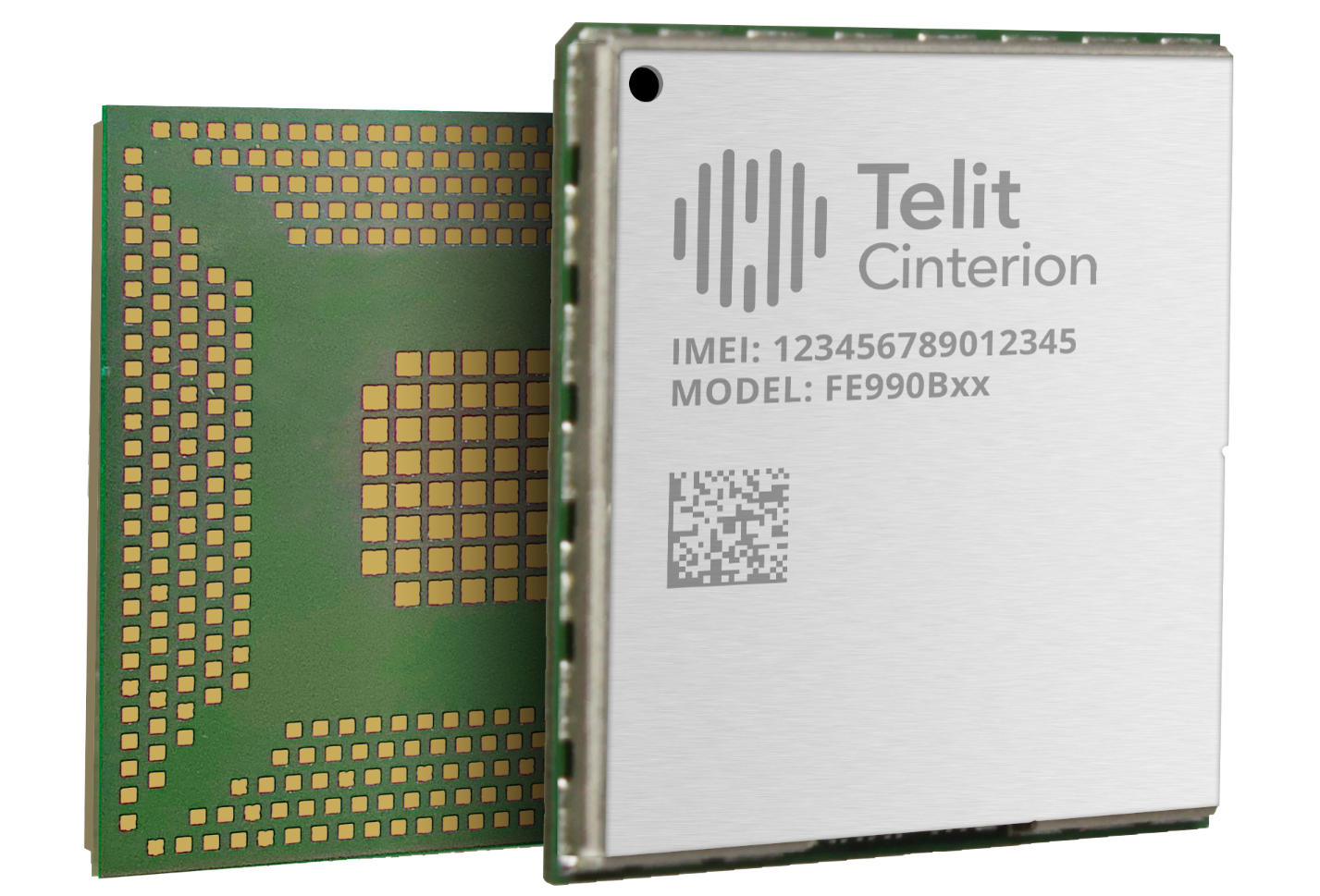

The Telit Cinterion FE990B34/40 LGA module family enables next-generation, high-performance 5G LGA modules. They feature 5G sub-6 technology with Gigabit LTE and WCDMA support, plus a state-of-the-art multi-constellation GNSS receiver.
This LGA module is ideal for applications that require ruggedized modems that are feature- and interfac-erich with a compact footprint. It’s suitable for high-performance enterprise and industrial applications.
- Available in two regional variants (EMEA and North America) with 5G sub-6 FDD and TDD bands
- Each regional SKU is available with 2xCA or 3xCA support
- Supports SA and NSA operations and 5G core network Opt. 3a/3x and Opt. 2 for full network compatibility
- 4 x 4 MIMO DL support on all bands
- 4G Category (Cat) 20 up to 5xCA
Product Description
The Telit Cinterion FE990B34/40 LGA module family enables next-generation, high-performance 5G LGA modules. They feature 5G sub-6 technology with Gigabit LTE and WCDMA support, plus a state-of-the-art multiconstellation GNSS receiver.
This LGA module is ideal for applications that require ruggedized modems that are feature- and interfac-erich with a compact footprint. It’s suitable for high-performance enterprise and industrial applications.
This module leverages Qualcomm® Snapdragon® X72 5G Modem-RF System and is compliant with 3GPP 5G Release (Rel) 17 5G deployments.
Compact LGA form factor (41 x 41 x 2.9 mm)
Product Features:
- 5G sub-6 FDD and TDD, SA and NSA operations
- 5G core network Opt. 3a/3x and Opt. 2
- 4G: 5xCA up to 20 layers DL, 2xCA UL; 256-QAM DL/UL
- 3G: HSPA+ Rel 8; 42 Mbps DL, 11 Mbps UL (-RW variants only)
- GNSS: gpsOne Gen 9 Band L1 with dedicated antenna pad, L5 support on request
- Antenna ports: four 5G sub-6/LTE and one GNSS
- Support of up to three Wi-Fi and two Ethernet transceivers
- Quad core ARM Cortex A55 @ 2.2 GHz
- Firmware over-the-air (FOTA) support
Certifications:
FE990B34-RW and FE990B40-RW:
Anatel, CE/RED, GCF, Vodafone, Deutsche Telekom, VF*
FE990B34-NA and FE990B40-NA:
FCC, IC, PTCRB, AT&T, T-Mobile U.S., Verizon*
Dimensions:
- 41 x 41 x 2.9 mm
Operating Temperature Range:
- -40° C to +85° C
Data Throughput:
FE990B40
• 5G NSA: up to 4.9 Gbps DL, 0.55 Gbps UL (DL: LTE 8-layer + NR 200 MHz)
• 5G SA: up to 4.1Gbps DL, 0.90Gbps UL (NR 200 MHz)
• 4G: 2 Gbps DL, 210 Mbps UL
FE990B34
• 5G NSA: up to 3.6 Gbps DL, 0.55 Gbps UL (DL: LTE 8-layer + NR 140 MHz)
• 5G SA: up to 2.8 Gbps DL, 0.45Gbps UL (NR 140 MHz)
• 4G: 2 Gbps DL, 210 Mbps UL
• 3G (HSPA+): 42 Mbps DL, 11 Mbps UL
- High-performance quad-core CPU and Linux OpenWRT OS, ideal for router development without an external CPU
- Telit Cinterion IoT AppZone development environment to allow customers to implement applications that run on the module CPU
Drivers Support:
- Windows 10
- Linux
