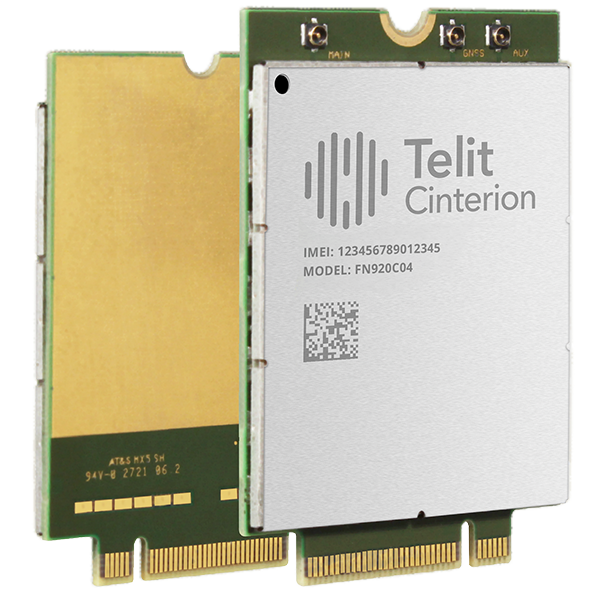

FN920C04 , 5G Modül , 5G Rel 17 / LTE Cat 4
The FN920C04 enables 5G mid-speed connectivity relying on the latest 3GPP Release 17 RedCap technology. It levels up performance and efficiency compared to LTE, promising the highest level of flexibility by offering customers to move to a secure 5G future easily.
The FN920C04 is industrial grade, rugged, suitable for global use, with enhanced uplink performance, power saving features, and with LTE Cat 4 fallback for best coverage.
- RedCap fills the gap between high-speed mobile broadband devices and extremely low-bandwidth devices
- First generation 5G RedCap IoT modules offer worldwide coverage with LTE Cat 4 fallback and flexible form factors
- The module integrates perfectly with Telit Cinterion connectivity and services, encompassing NExT™ data plans, connectivity activation, AppZone and OneEdge™
Product Description
Resilient, low latency, mid-speed 5G for the future intelligent edge, the FN920C04 series enables performance and efficiency improvements, promising the simplest upgrade path from existing LTE and 5G solutions to 5G RedCap.
The FN920C04 relies on the latest 3GPP Release 17 Redcap technology, is designed on a standardized M.2 card form factor and is suitable for global use with fallback to LTE Cat.4 for best possible coverage.
- Global footprint and an optional eSIM onboard for seamless 5G connectivity
- Secure by design, strengthened core functions for improved end-to-end security
- Precise positioning with support for L1+L5 frequencies and a dedicated GNSS port
- Powered by Telit Cinterion’s value added services, encompassing NExT™ data plans, connectivity activation, AppZone processing and OneEdge™ services
RedCap fills the gap between enhanced mobile broadband (eMBB) devices and extremely low-bandwidth, massive Machine Type Communication (mMTC) devices.
Applications:
- Cellular Router and Gateways
- Fixed Wireless Access (FWA)
- Connected Healthcare
- Video Surveillance
Form Factor Family
These data cards are industry-standard, edge-connected M.2 mini cards, formerly known as the Next Generation Form Factor (NGFF), which makes them compatible with Telit Cinterion 4G LTE and 5G data cards.
Customers can now choose among a wide variety of advanced cellular technologies, including mobile broadband LTE and 5G, giving them full flexibility to fulfill their needs.
Product Features:
- 5G Sub.6 FDD and TDD operation in 5G NR Standalone
– DL: 220 Mbps
– UL: 100 Mbps - LTE Cat 4
– DL: 150 Mbps
– UL: 50 Mbps• SMS text and PDU mode support - Security by design
- Informal network scan
- Embedded processing enabled by IoT AppZone
- OneEdge cloud services
- Integrated GNSS support L1 + L5 (GPS, BeiDou, GLONASS, Galileo)
- Firmware over-the-air (FOTA) support
- Wake on WAN (WoWAN
- Dynamic Power Reduction (DPR)
Certifications:
Regulatory/Industry Certifications:
- FCC, CE/RED, ISED, RCM, NCC, JATE-TELEC, GCF/PTCRB
Carrier Certifications:
- AT&T incl. FirstNet, TMOUS, VzW, Vodafone, Telstra, KDDI, NTT Docomo, Softbank
Dimensions:
- 30 x 42 x 2.3 mm
Operating Temperature Range:
- -40° C to +85°C
Electrical specifications:
- Supply voltage range: 3.1-3.5 V
- Pads for Rx diversity/MIMO antennas
- Pads for GNSS antenna
- USB 2.0 interface up to 480 Mbps
- GPIO, PCIe Gen2.0, I2S, SIM detected
- Dual UICC and U-SIM card interfaces 1.8 V/3 V
- Lines for Module-On and Reset
Connectivity Solutions
NExT™ powered by Telit Cinterion is a cloud native core network. Telit Cinterion is a full tier 1 MVNO, enabling new and enhanced turnkey connectivity solutions and device management services. With this IoT network, you can deploy powerful, intelligent Global roaming with multi -IMSI and localization capabilities (eUICC) on more than 600 mobile carriers in 200+ countries in 2G/3G/4G/CAT-M/NB-IoT & 5G. The NExTPro our Connectivity Management Portal
provides full visibility, monitoring & analytics.
In addition, Telit Cinterion offers Connectivity Activation, a remote SIM provisioning service that leverages latest eSIM technology to simplify and optimize connectivity provisioning and M(V)NO selection. Connectivity Activation digitalizes SIM provisioning and makes the IoT journey seamless and efficient for your devices, from the factory to the last day of operation.
Drivers Support:
- Drivers for Windows® 11
- Driver for Linux
- Android RIL
