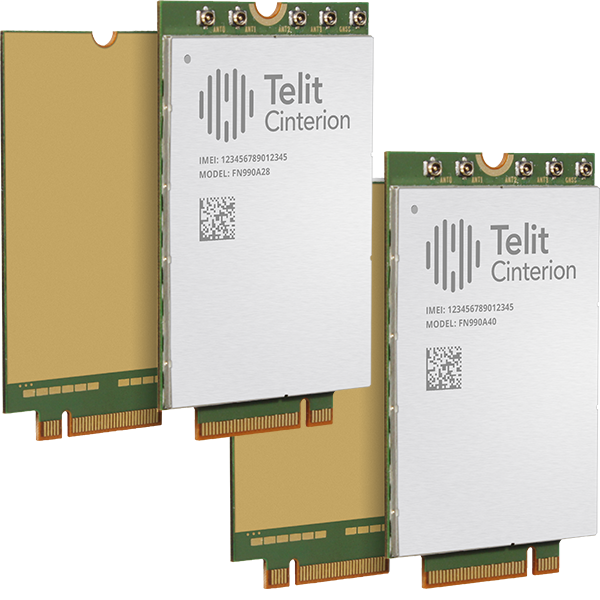

FN990A40/A28 _ FN990A40-HP/A28-HP , 5G Modül , LTE/5G Data Card
These data cards lay the foundation for businesses worldwide to future-proof IoT, enterprise applications and video. They leverage 5G and Gigabit LTE benefits immediately.
- Supports 5G sub-6 FDD and TDD for global deployment
- Supports SA and NSA operations and 5G core network
- Standard M.2 (NGFF) data card form factor
- Each variant is available with or without PC1.5 support on 5G TDD bands n41, n77, n78 and n79
The industrial-grade M.2 form factor is suitable for many high-performance and bandwidth-intensive enterprise and industrial applications. Use cases include:
- Fixed wireless access
- Enterprise routers and gateways
- Indoor and outdoor CPE
- Professional broadcasting and surveillance
Designed for global usage, the FN990A40 and FN990A28 incorporate support for all scenarios prescribed by 3GPP Release (Rel) 16 5G deployments.
- Opt. 3a/3x and Opt. 2 for full network compatibility
- Latest generation 4G and 5G Rel 16 4G Cat 20 up to 7xCA for FN990A40 4G Cat 19 up to 5xCA for FN990A28
- Intraband and interband UL CA supported on 4G networks for improved throughput performance for uplink-centric applications (e.g., surveillance cameras and 4K/8K video streaming)
- 3G HSPA+ Rel 8 for fallback to legacy networks
- Support for PCIe Gen 3 and USB 3.1 Gen 2 for maximum application design flexibility
- Dedicated/shared (switchable) RF path/connector for GNSS L1 to allow total flexibility in the design phase and low losses whenever high sensitivity is required
- Internal GNSS L1 LNA allows the use of less expensive passive antennas, lowering the total cost of ownership
Form Factor Family
Industry-standard edge-connected M.2 mini cards formerly known as the Next Generation Form Factor (NGFF). Telit M.2 cards comply to the key B standard and can be 42, 50 or 52 mm long, single- and double-sided form factors depending on model.
Cellular Features:
- 5G sub-6 FDD and TDD, SA and NSA operations
- 5G core network Opt. 3a/3x and Opt. 2
- 4G (FN990A40): 7xCA up to 20 layers DL/ 2xCA UL, 256-QAM DL/UL
- 4G (FN990A28): 5xCA up to 19 layers DL/2xCA UL, 256-QAM DL/UL
- 3G: HSPA+ Rel 8 (42 DL/11 UL Mbps)
5G FR1 bands
- n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G FR1 bands
- FN990A28: 120 MHz, 2CC CA DL
- FN990A40: 200 MHz, 3CC CA DL
Supported LTE bands
- B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71
GNSS: GPSOne™ Gen 9 Band L1 on dedicated RF connector
4 x 4 MIMO DL support on bands:
- 5G FR1: n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n75/n77/n78/n79
- 4G: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42/B43/B48/B66
2×2 MIMO UL support on bands:
- 5G FR1:n38, n41, n48, n77, n78, n79
Antenna Types: four LTE/sub-6 + one GNSS
FOTA support
Certifications:
FCC, IC, RED, NCC, JATE/TELEC, KC, NCC*, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT*, Telstra, T-Mobile US**, VzW Various MNOs
* FN990A28 only
** Ongoing
Dimensions:
- 30 x 52 x 2.25 mm
Operating Temperature Range:
- -40° C to +85° C
LTE/5G Sub-6 Output Power:
- 23 dBm (Power Class 3)
- 26 dBm (Power Class 2) in B41/n41
- 29 dBm (Power class 1.5) on n41, n77, n78 and n79: FN990A28-HP and FN990A40-HP only
Supply Voltage:
- Nominal: 3.3 V dc
FOTA support
Drivers Support:
- Windows 10
- Linux
