LCD1602 I2C Module

LCD1602 I2C Module, White color with blue background, 16x2 characters LCD, 3.3V/5V

Teklif İsteyiniz

Lütfen aşağıda belirtilen detayları belirterek, fiyat teklifi talebinde bulununuz.

* ile işaretli olanlar zorunlu doldurulmalıdır.

*
*
*
*

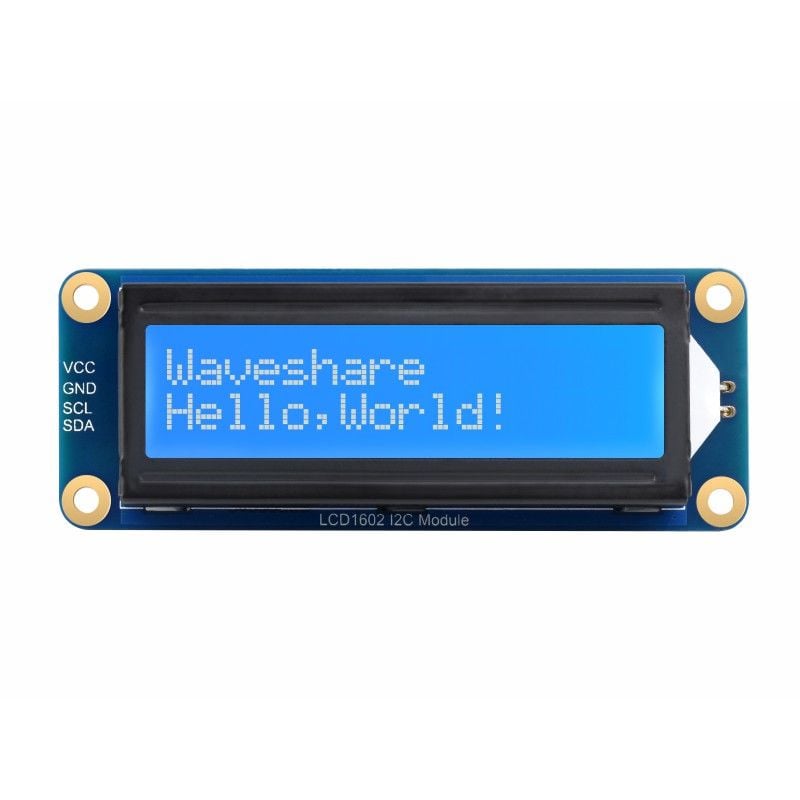

LCD1602 I2C Module, White Color With Blue Background, 16x2 Characters LCD, 3.3V/5V
LCD1602 I2C Module

White Color With Blue Background, I2C Communication, 3.3V/5V Compatible

Supports Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32 and Arduino...



  • Characters16 × 2
  •
  • InterfaceI2C
  •
  • Display PanelChar LCD
  •
  • Display effectWhite on Blue
  •
  • LCD ControllerAiP31068

Features At A Glance
  • Incorporates character LCD panel LCD1602
  • I2C control interface, only two signal pins are required, saving the IO resource
  • Compatible with 3.3V/5V operating voltage
  • Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specifications
COMMUNICATION INTERFACE I2C LCD CONTROLLER AiP31068
OPERATING VOLTAGE 3.3 ~ 5V OPERATING TEMPERATURE -20 ~ +70℃
DISPLAY PANEL character LCD DISPLAY SIZE 64.5 × 16.0mm
CHARACTERS 16 × 2 DIMENSIONS 87.0 × 32.0 × 13.0mm

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

I2C Control Interface

Only Two Signal Pins Are Required, Saving The IO Resource

VCC 3.3V ~ 5V power input
GND GND
SCL I2C clock pin
SDA I2C data pin

Demonstration
for reference only, Raspberry Pi Pico is NOT included.

Product Show

Outline Dimensions
Ekran Boyutu : 16 x 2
