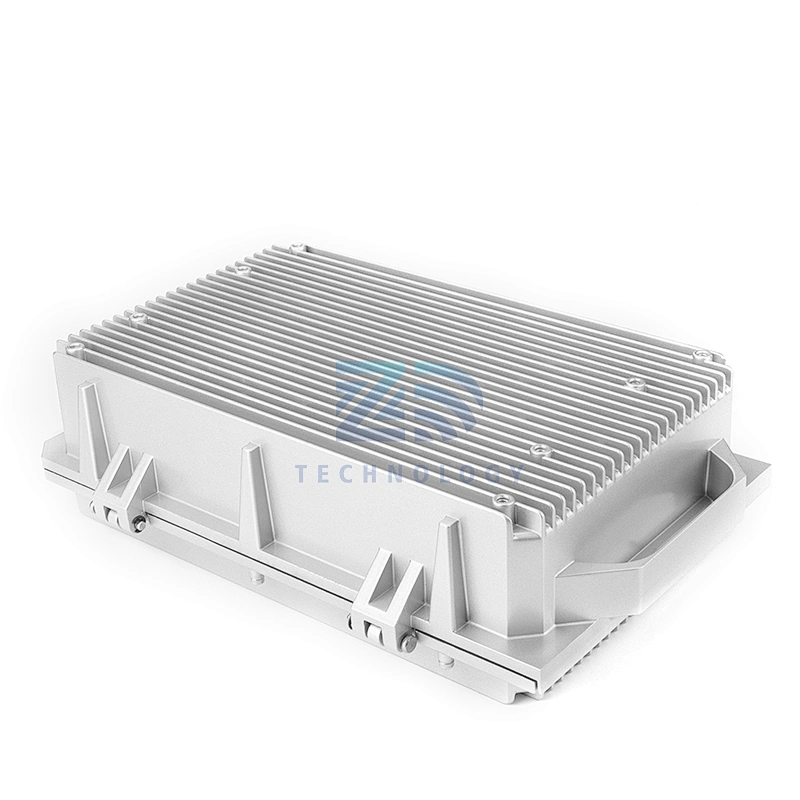

LTE700 single band repeater 20-23dBm for outdoor signal coverage
1. Compact size with stable performance.
2. Support antenna isolation detection.
3. Designed for indoor application.
4. MGC available for both uplink and downlink.
5. AGC to control output power at its maximum power level.
6. Low interference & Oscillation prevention.
7. Cost-effective for practical solutions.
8. Extend phone battery life.
Specifications: | |||
Items | Uplink | Downlink | |
Frequency Range | LTE700 (Band 28) | 718 ~ 728MHz | 773 ~ 783MHz |
Operation Bandwidth (-3dB) | Wide Band | ||
Maximum Gain | ≥65dB | ≥70dB | |
Output Power | ≥17dBm | ≥20dBm23dBm | |
MGC (Manual Gain Control) | 31dB range/1dB step | ||
AGC (Automatic Gain Control) | ≧50dB | ||
Spurious Emission | 9KHz~1GHz | ≦-36dBm | |
1GHz~12.75GHz | ≦-30dBm | ||
Noise Figure | ≤ 6dB | ||
VSWR | ≦2.0 | ||
Group Delay | ≤1μs | ||
LED Alarm | Power LED | DC ON/OFF | |
ISO LED | Alarm Red/When output power over 3dBm | ||
RF Connector | N-Female | ||
Impedance | 50Ω | ||
Power Consumption | 8W | ||
Power Supply | Input: AC 110~240V | ||
Operating Temperature | -10℃~50℃ | ||
Environment Conditions | IP65 | ||
Dimensions (D x W x H ) | 230*150*60mm | ||
Weight | ≤3KG |
