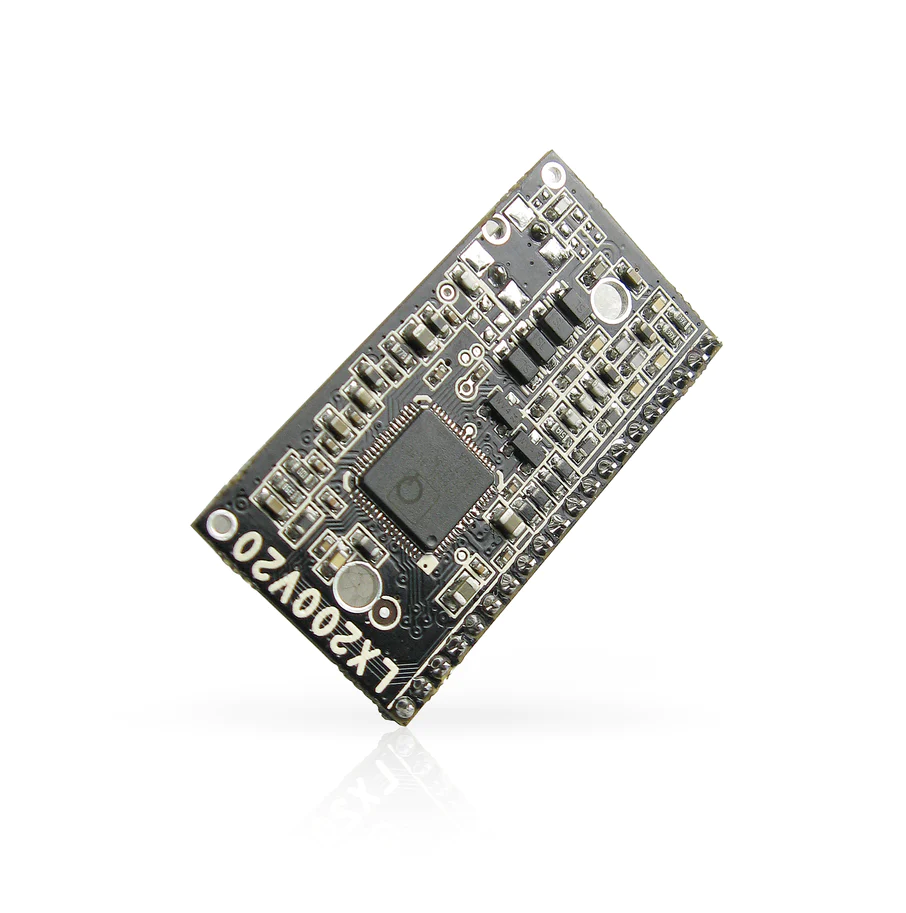

WisLink PLC LX200V20

Product Description

WisLink LX200V20 is a power-line communication(PLC) module based on the Qualcomm QCA6410 SoC. It is designed for embedded applications. It is compact, supports both IEEE1901 and Homeplug AV standards, and is ideal for a range of scenarios.

The module uses the MII interface to provide and can be integrated with IoT nodes, CCTV cameras, smart metering systems, energy management systems, etc.

*Note: The maximum data rate parameter is given for the physical layer. The speed for the data layer will be lower.

Complete documentation of this product can be found on our website documentation page.

Key Features

• Qualcomm QCA6410 SoC
• Max Data Rate: up to 200Mbps*
• Max Range:
• 300m Power Lines
• 600m Telephone Lines
• 2000m Cable Lines
• IEEE1901 and Homeplug AV Support
• MII Standard Interface
• 128-bit Encryption of Data
• A maximum of 8 modules can interface with each other
• Works below CATV signal interference range
