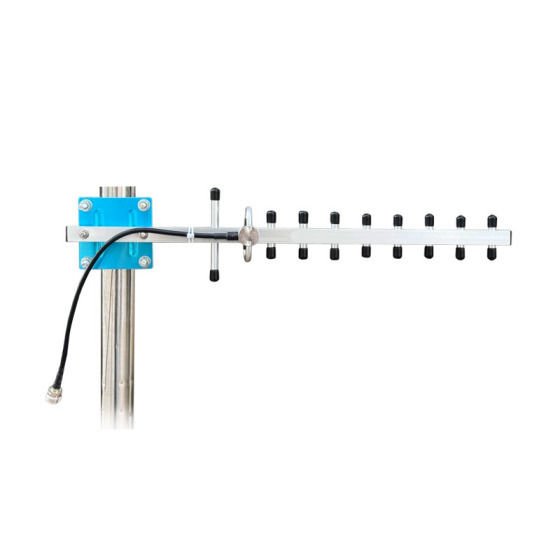

MRTK-D24Y12-10, 2.4GHz Yagi Anten, 12dBi, 30cm RG58 N/Dişi
Fiyat
40,00 USD + KDV
1.532,58 TL + KDV
| Part No: MRTK-D24Y12-10 series light aluminium alloy duty | |
| Yagi are factory assembled and adjusted for easy installation. | |
| They feature light-wall tubing elements and machined aluminum blocks for the boom-to-element | |
| junctions.Fourteen element models are available.Economical,lightweight installation and good | |
| performance. | |
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| F/B Ratio | ＞18dB |
| Gain | 12dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 40° |
| Vertical Beam width | 36° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | Aluminum |
| Mount way | Pole |
| Diameter of Installation Pole | Φ30-50mm |
| Mechanical | |
| Antenna Dimension | 470x100x45mm |
| Weight | 690g |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 12dBi |
