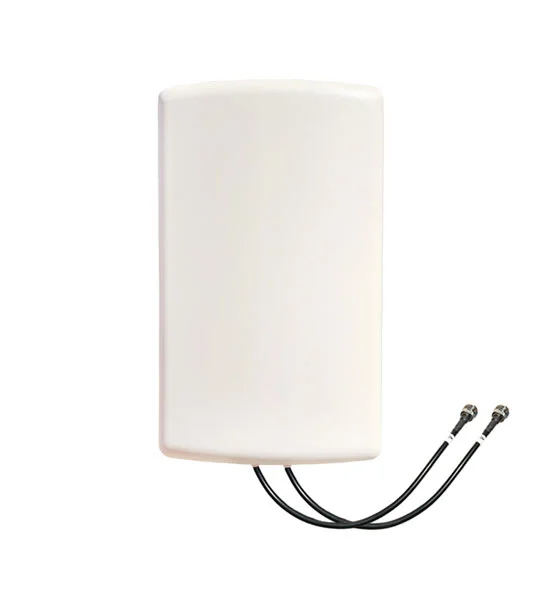

MRTK-D7027-W13X2, LTE / 4G Mimo Anten, Superbox / Modem Uyumlu , Vidalı Montaj , 9/11dBi, 30cm RG58, N-Dişi
The IP65-rated High-Gain MIMO Panel Directional Antenna is made from weatherproof and corrosion- resistant material, and is suited for both indoor and outdoor applications.
MIMO Panel Directional Antenna extends the coverage range of a wireless network in a single direction.
It is ideal for delivering extended access range.
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| Gain | 9/11dBi |
| F/B Ratio | 15/20dB |
| V.S.W.R | ≤2.0 |
| Radiation | Direction |
| Horizontal Beam width | 70°/75° |
| Vertical Beam width | 75°/60° |
| Polarization | ±45° |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | 2XN Female |
| Cable Type | RG58U |
| Cable Length | 30CM |
| Antenna Radome Material | ABS |
| Mount way | Wall mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 300x183x70mm |
| Weight | 0.7KG |
| Operating Temperature | -40℃ to+60℃ |
| RoHS Compliant | YES |
| Kazanç | : | 9dBi, 10dBi |
