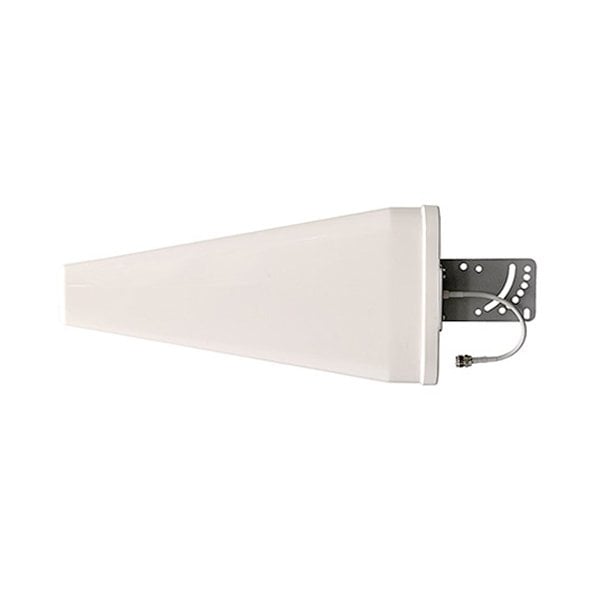

| The Log Periodic Directional Antenna (LPDA) is a high-gain wide-band directional antenna. | |
| The LPDA covers all international cellular, mobile, and wireless data bands including GSM | |
| 900/GSM1800/UMTS/LTE bands | |
| This antenna is unique in its combination of an ultra wide-band operator with consistent high-gain | |
| performance. It has been successfully used in extreme weather environments in Africa and Europe | |
| with close to zero failures. | |
| It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS). | |
| Supply mounts and bolts for fixed outdoor installation .Final connector N Female(can be customized) |
| Electrical | |
| Frequency Range | 698-960/1710-2700MHz |
| F/B Ratio | ＞16dB |
| Gain | 9/11dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Direction |
| Horizontal Beam width | 75° |
| Vertical Beam width | 55° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | Custom |
| Antenna Radome Material | ABS |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 440x209x70mm |
| Weight | 800g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 9dBi, 10dBi |
