MRTK-D868Y09-07, 868MHz Yagi Anten, 9DBi ,30cm rg58, N Dişi
Fiyat
40,00 USD + KDV
1.405,00 TL + KDV

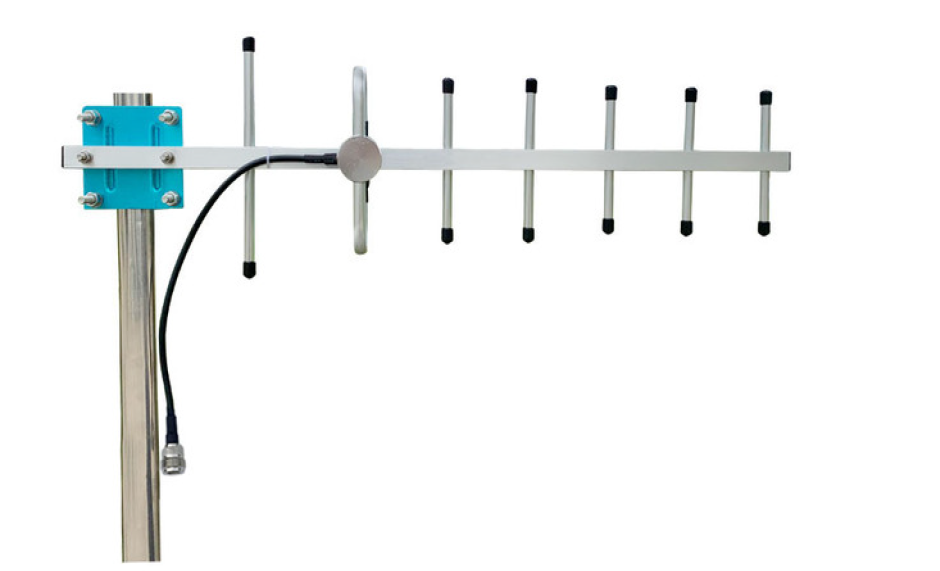

The YAGI antenna is designed for use in RFID/LoRa systems working in 865-868Mhz.
Light aluminium alloy duty Yagi are factory assembled and adjusted for easy installation.
They feature light-wall tubing elements and machined aluminum blocks for the boom-to-element
junctions.
7 element models are available.Economical, lightweight installation and good performance
| Electrical | |
| Frequency Range | 865-868MHz |
| Band width | 3MHz |
| F/B Ratio | ＞14dB |
| Gain | 9dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 50° |
| Vertical Beam width | 48° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Cable Type | RG58U |
| Cable Length | 30cm |
| Antenna Radome Material | Aluminum alloy |
| Mount way | Pole Mount |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 600x180x58mm |
| Weight | 350g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 9dBi |
