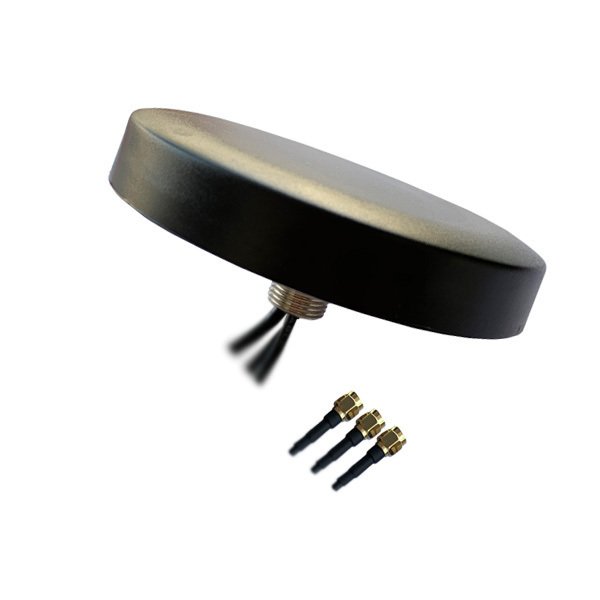

| The 3in1 GPS/WIFI/LTE antenna is a low profile,heavyduty, waterproof reach IP66. | ||
| It use by RF professionals in telematics，transportation and remote monitoring applications. | ||
| It combines the highest possible efficiency and peak gain in GPS/2G/3G/4G in a low profile compact | ||
| format for mounting via high quality first tier | ||
| For installation combines 3M adhesive foam,screw mount together。 |
| Electrical | ||
| GPS Part: | Dielectric Antenna | |
| Frequency Range | 1575.42MHZ±3 MHz/1602-1610MHz | |
| Polarization Type | RHCP | |
| Gain | 5dBi | |
| V.S.W.R | <2.0 | |
| Impedance | 50Ώ | |
| LNA | ||
| LNA Gain | 28±2dB Typical | |
| Noise Figure | 1.5dB | |
| Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
| V.S.W.R | ＜2.0 | |
| Voltage | 2.7/3.0/3.3/5.0/3.0 to 5.0 etc. | |
| Current Consumption(mA) | 11 Max | |
| Impedance | 50Ώ | |
| DC current | 5-15mA | |
| WIFI Part: | Frequency range | 2400-2500MHz |
| V.S.W.R | 2.0:1 | |
| Gain | 3dB | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| LTE Part: | Frequency range | 698-960MHz/1710-2700MHz |
| V.S.W.R | 2.0:1 | |
| Gain | 2dBi | |
| Polarization | Linear | |
| Impedance | 50Ω | |
| Mechanical | ||
| Housing | Black | |
| Cable | RG174 | |
| Length | 3M | |
| Connector | 3xSMA Male | |
| Environmental | ||
| Working Temp | -40℃~+85℃ | |
| Humidity | 55%-75%RH | |
| Waterproof | IP67 | |
| Antenna Radome Material | ABS | |
| Mount way | Screw | |
| Antenna Dimension | Ф80×15 mm | |
| Weight | 150g | |
| RoHS Compliant | YES | |
| Kazanç | : | 5dBi |
