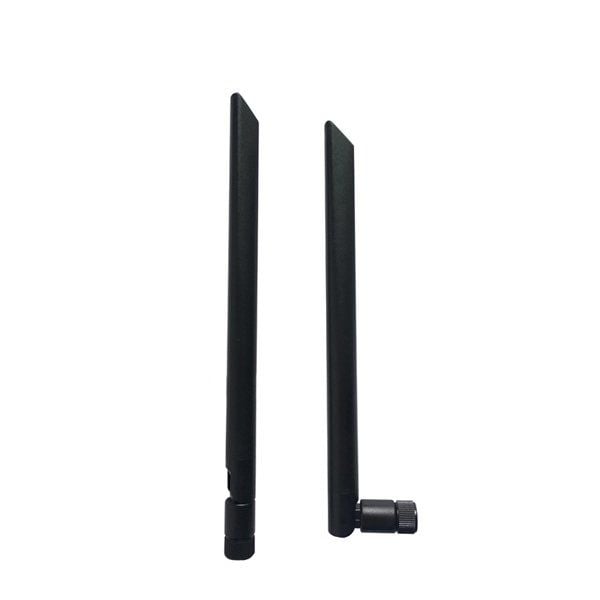

| The 2.4/5.8g Blade Dipole Antenna is a compact antenna with high peak gain,high efficiency and | |
| cost effective.Covers all common wifi bands,Tilt / Swivel Joint for optimum positioning | |
| The antenna blade itself is only 20cm long .No tuning or ground plane are required. | |
| The Blade Dipole Antenna greatly reduces the risk of implementation, making it a true plug and | |
| go solution. | |
| The antenna is well suited for use with both plastic and metal enclosures, and its affordable price | |
| point, small size and modern design offers customers a low profile option for a more aesthetically pleasing | |
| product. |
| Electrical | |
| Frequency Range | 2400-2483/5150-5250/5750-5850MHz |
| Gain | 5dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Female |
| Antenna Radome Material | TPEE |
| Mechanical | |
| Dimensions | Φ13x200mm |
| Weight | 21g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 5dBi |
