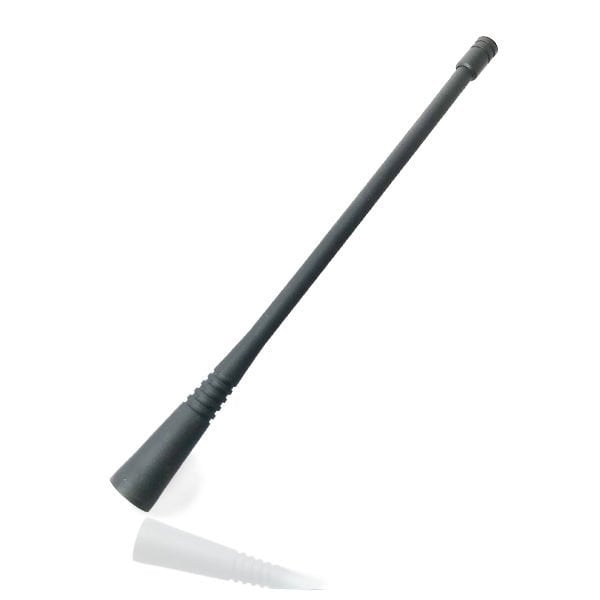

MRTK-Q433-DSM, 433MHz Antenna, 2.5dBi, SMA-Male
| MRTK-Q433-DSM is a 2.5dBi 433MHz band flexible whip antenna with omnidirectional | |
| pattern optimized in the azimuth for wide coverage range in typical UHF applications | |
| Peak gain, average gain/efficiency are optimised to provide extended coverage area | |
| in the azimuth (horizontal direction), while also maintaining an omnidirectional pattern | |
| for close-in reception/transmission. | |
| Typical applications include remote monitoring, connected enterprise and mesh networks. | |
| It also finds its usage in remote asset monitoring applications, alarms, paging systems | |
| and private mobile radio services. | |
| This whip is made up of a flexible inner Spring covered by TPE so extremely resistant to | |
| collisions and maintaining its original shape and RF performance. | |
| Customized frequency and gain versions can be supplied. |
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤1.8 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | TPE |
| Mechanical | |
| Antenna Dimension | Φ12x170mm |
| Weight | 10g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Kazanç | : | 2.5dBi |
