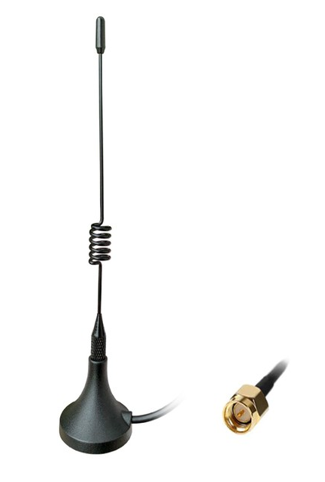

MRTK-Q433-I01, 433MHz RF Anten , 3dBi , 3m RG174 kablo , SMA / Erkek
High quality and durable high gain omnidirectional 150mm long antenna with 3meter coaxial cable and SMA connector.433MHz is a commonly used frequency band for all types of equipment that require little power, such as garage door openers, headphones, baby monitors and remote controls Omnidirectional antennas are used in most consumer RF wireless devices, including cellular telephone handsets and wireless routers.Designed with a magnetic base. The antenna can be placed on any iron surface horizontally or vertically. However, the vertical position is recommended for better signal 3meter coaxial cable with SMA connector for easy connection, so no extension is needed
2. Specification |
|
Electrical |
|
Frequency Range |
433MHz |
Gain |
3dBi |
V.S.W.R |
≤2.0 |
Radiation |
Omni-Direction |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50Ώ |
Connector |
SMA Male(can be customization) |
Cable Type |
RG174 |
Cable Length |
3M |
Antenna Radome Material |
Steel |
Mounting way |
Magnetic Mount |
Mechanical |
|
Dimensions |
Φ29x150mm |
Weight |
45g |
Operating Temperature |
-40℃ to+70℃ |
RoHS Compliant |
YES |
Kazanç | : | 3dBi |
