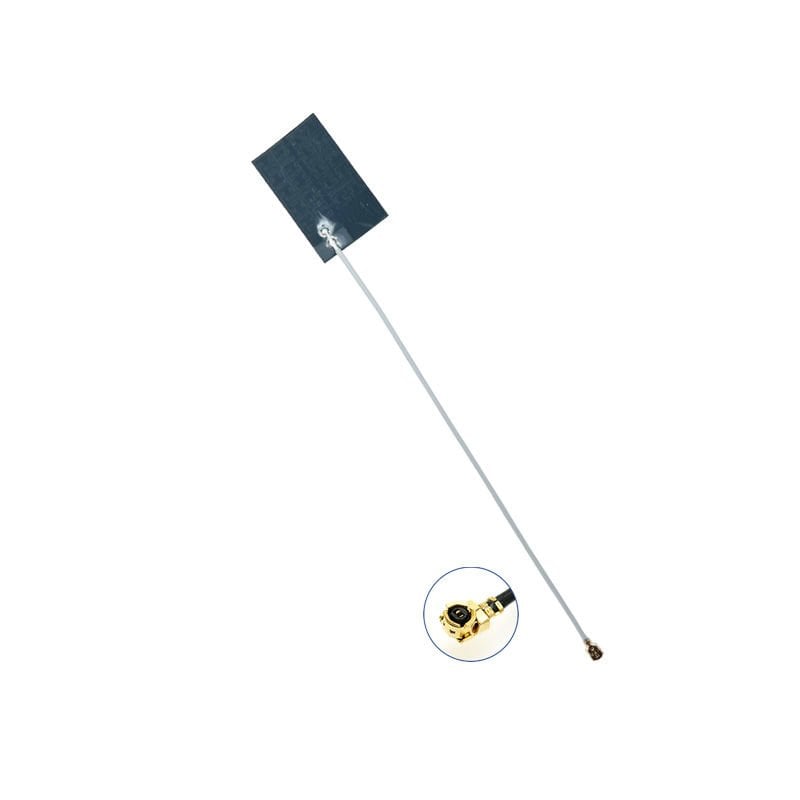

MRTK-Q433-N29 , 433MHz Esnek Anten , 3dBi, 10cm IPEX
Fiyat
3,20 USD + KDV
110,38 TL + KDV
| Very low cost Compact for physical concealment Precision-wound coil Rugged phosphor-bronze | |
| construction Mounts directly to the PCB Can be customized according to customer requirements | |
| devices requiring 4G, 3G, diversity, NFC, Bluetooth, LORA and GPS frequency bands. | |
| 10cm 1.13 cable and u.fl connector is standard configuration |
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±3MHz |
| Gain | 3dBi |
| V.S.W.R | ≤1.5 |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | IPEX |
| Cable Type | 1.13cable |
| Cable Length | 10cm |
| Antenna Radome Material | FPC |
| Mount way | Adhesive |
| Mechanical | |
| Dimensions | 27x17mm |
| Weight | 1g |
| Operating Temperature | -40℃ to+70℃ |
| Humidity | +15-70%RH |
| RoHS Compliant | YES |
| Kazanç | : | 3dBi |
