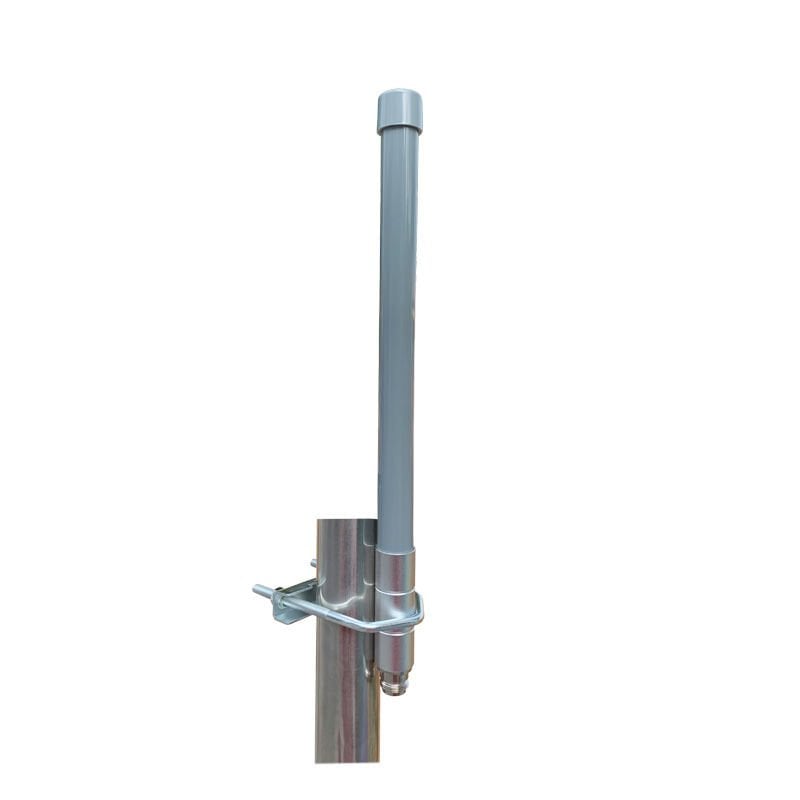

MRTK-Q433F05B, 433MHz Yüksek kazançlı Anten, Fiberglass Omnidirectional , 7dBi, N-Dişi
Fiyat
35,00 USD + KDV
1.191,33 TL + KDV
It is Omni Antenna Low signal attenuation, strong anti-interference,high signal quality,easy to
operate and install;Work for 430-435Mhz Device to improve signal reception and transmition range，
This is a commonly used frequency band for all types of equipment that require little power,
such as garage door gate openers,Intelligent wifi remote,smart home,headphones,baby monitors
and remote controls Transmitter.Omni directional antennas are used in most consumer
RF wireless devices, including cellular telephone handsets and wireless routers
Omni-directional antennas are the right choice for situations where you need to be in contact with
sources that are in two directions or if you do not know what direction the signals will be coming from.
They also feature a very versatile clamp mounting system that will fit most every situation you will
encounter.
| Electrical | |
| Frequency Range | 433MHz |
| Band width | ±5MHz |
| Gain | 7dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 12° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Mounting Mast Diameter | Ø30~Ø50mm |
| Mechanical | |
| Antenna Dimension | Φ20x680mm |
| Weight | 0.5KG |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Kazanç | : | 7dBi |
